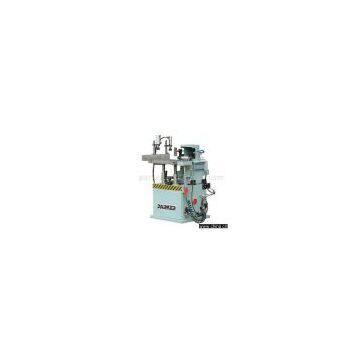

Sell Alu-PVC End Milling Machine

Place of Origin	China

Model No.:LDX-200
Product Origin:China
Brand Name:Parker
Price Terms:
Payment Terms:
Certification:
Description:Product Name: Alu-PVC End Milling MachineModel Number: LDX-200Place of Origin: ChinaParameters and specifications: 1) Harshness: Ra12.5μm 2) Power supply: 380V, 50Hz (three-phase, four-wire) 3) Motor power: 1.5kW 4) Rotary speed: 2,800rpm 5) Air pressure: 0.5-0.8MPa 6) Max. diameter of milling cutter: 200mm 7) Max. milling range: 200 x 70 x 45mm 8) Table up-down travel: 0-80mm 9) Overall dimensions: 850 x 740 x 1,280mm 10) Weight: 150kg Equipment features: 1) Used for processing aluminum profile end step faces and end slots 2) Super precision main shaft insures accurate and steady processing 3) Adjustable processing angle within 30°-90° 4) Convenient tool setting due to adjustable worktable 5) Main tool shaft is connected by shaft coupling, thus the motor main shaft rotating accuracy can not affect the tool's working accuracy 6) Tool feeding adopts linear bearing motion pair, which insures steady process
