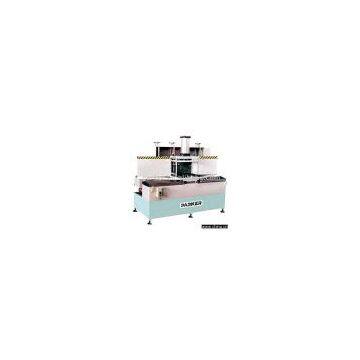

Sell Profile Tenon Milling Equipment

Place of Origin	China

Model No.:TM25
Product Origin:China
Brand Name:Parker
Price Terms:
Payment Terms:
Certification:
Description:Product Name: Profile Tenon Milling EquipmentModel Number: TM25Place of Origin: ChinaFeatures: 1) Power supply: 380V, 50Hz 2) Input motor: 13.2kW (six groups) 3) Input motor: 0.37kW 4) Rotary speed: 2,800rpm 5) Air pressure: 0.5-0.8MPa 6) Principal axis diameter: Φ22mm 7) Worktable feeding speed: 1,570mm 8) Worktable size: 510 x 480mm 9) Door and window material: 4pcs Φ250 milling cutters, 1pc 14" milling cutter, and 1pc 16" milling cutter 10) Curtain wall material: 5pcs Φ250 milling cutters, 1pc 16" milling cutter 11) The cutter adjust journey: transverse 80mm, portrait 280mm 12) Milling cutter amount: 6pcs 13) Dimensions: 2,070 x 1,130 x 1,820mm 14) Weight: about 1,500kg Equipment features: Six portfolio tools need to be combined into one, to be arbitrary size profile in the joints into face milling cutter population size, in the two groups within the 180° face milling applicable to all profiles. It adjusts surface to the level of molding and processing system into adjustable speed motor drive, and cut into uniform, smooth and accurate surface.
