Home > Products > New product > DM800HD Satellite Receiver

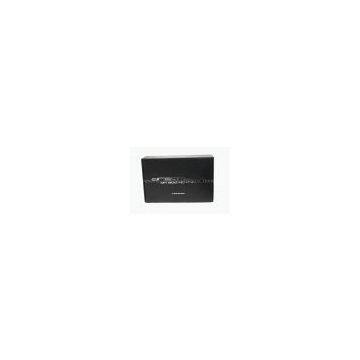

DM800HD Satellite Receiver
Negotiable
/ Set
10 Sets(Min. Order)
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | OEM | Place of Origin | China | |
| Model Number | 800hd |
Product Description
Specifications
1.400MHZ Processor , Rev D6 Mainboard
2.Colored OLED Display
3.Sim2.10,Bootloader #84A
4.2 X USB 2.0, 2 X SmartCard Reader
Product Description:
Technical Features
300 MHz MIPS Processor
Linux Operating System
OLED - Display
MPEG-2 / H.264 Hardware decoding
Tuner: DVB-S, optional: DVB-C, DVB-T
Tuner Module, Plug&Play
1 x Smartcard-Reader (Dreamcrypt CA)
V.24/RS232 Interface
10/100Mbit Ethernet Interface
1 x Scart (RGB, FBAS or S-Video)
DVI
2 x USB 2.0
analog modem
S/PDIF Interface for digital bit stream out (AC-3)
64 MByte Flash, 256 MByte RAM
SATA
for use either as internal SATA HDD 2,5"
to use for extern eSATA
unlimited channel lists for TV/Radio
channel-change time < 1 second
automatic service scan
directly bouquet-lists
EPG (electronic program guide)
multiple LNB-Switching control (supports DiSEqC)
OSD in many languages and skin-support
Videotext Decoder
extern 12V power supply
Linux Operating System
OLED - Display
MPEG-2 / H.264 Hardware decoding
Tuner: DVB-S, optional: DVB-C, DVB-T
Tuner Module, Plug&Play
1 x Smartcard-Reader (Dreamcrypt CA)
V.24/RS232 Interface
10/100Mbit Ethernet Interface
1 x Scart (RGB, FBAS or S-Video)
DVI
2 x USB 2.0
analog modem
S/PDIF Interface for digital bit stream out (AC-3)
64 MByte Flash, 256 MByte RAM
SATA
for use either as internal SATA HDD 2,5"
to use for extern eSATA
unlimited channel lists for TV/Radio
channel-change time < 1 second
automatic service scan
directly bouquet-lists
EPG (electronic program guide)
multiple LNB-Switching control (supports DiSEqC)
OSD in many languages and skin-support
Videotext Decoder
extern 12V power supply
DBS-Tuner mit DVB-S2:
Frequency Range 950 .... 2150 MHz
Demodulation DVB-S (QPSK); DVB-S2 (8PSK,QPSK)
Symbol rate DVB-S: 2 ... 45 Mbaud/s, SCPC/ MCPC
DVB-S2: 10 – 31 Mbaud/s (8PSK) , 10 –30 Mbaud/s (QPSK)
Demodulation DVB-S (QPSK); DVB-S2 (8PSK,QPSK)
Symbol rate DVB-S: 2 ... 45 Mbaud/s, SCPC/ MCPC
DVB-S2: 10 – 31 Mbaud/s (8PSK) , 10 –30 Mbaud/s (QPSK)
Video decoder:
Video Compression MPEG-2 and MPEG-1 compatible, H.246
Video Formats 4:3 / 16:9
Letterbox for 4:3 TV-Device
Video Compression MPEG-2 and MPEG-1 compatible, H.246
Video Formats 4:3 / 16:9
Letterbox for 4:3 TV-Device
Audio decoder:
Audiokompression MPEG-1 & MPEG-2 Layer I and II, MP3
Audio Mode Dual (main/sub), Stereo
Frequency: 32 kHz, 44.1 kHz, 48 kHz, 16 kHz, 22.05 kHz, 24 kHz
Audio Mode Dual (main/sub), Stereo
Frequency: 32 kHz, 44.1 kHz, 48 kHz, 16 kHz, 22.05 kHz, 24 kHz
Output analog:
Output Level L/R 0,5 Vss on 600 Ohm
THD > 60 dB (1 kHz)
Crosstalk < -65 dB
THD > 60 dB (1 kHz)
Crosstalk < -65 dB
Output digital:
Output Level 0,5 Vss on 75 Ohm
Sampled Data Filtering 32 kHz, 44.1 kHz, 48 kHz
S/PDIF-Output optical, Toslink
Ausgang Video:
Ausgangspegel FBAS 1 Vss 0.3 dB an 75 Ohm
Sampled Data Filtering 32 kHz, 44.1 kHz, 48 kHz
S/PDIF-Output optical, Toslink
Ausgang Video:
Ausgangspegel FBAS 1 Vss 0.3 dB an 75 Ohm
Video parameter:
Input Level FBAS 1 Vss 0.3 dB on 75 Ohm
Teletext filter in conformity with ETS 300 472 Standard
Teletext filter in conformity with ETS 300 472 Standard
TV-Scart:
Output: FBAS,RGB,S-VHS over OSD selectable
Serielle Interface RS 232:
Typ RS232 bidirectional
Bitrate 115,2 kBit/s max.
Plug Connector SUB-D-9
Function Update of Firmware and Preprogramming
Serielle Interface RS 232:
Typ RS232 bidirectional
Bitrate 115,2 kBit/s max.
Plug Connector SUB-D-9
Function Update of Firmware and Preprogramming
Ethernet:
100 MBit compatible, bi-direktional interface
Function Update of Firmware and Preprogramming
Function Update of Firmware and Preprogramming
Analoge modem
analoge modem for Internet connection
SATA Interface:
- for use either as internal HDD 2,5“ or eSATAor internal 2,5" HDD
2 x USB 2.0 Host
2 x USB 2.0 Host
LNB power and polarisation per tuner:
LNB Current 500mA max.; short-circuit-protected
LNB Voltage vertical < 14V no load, > 11,5V at 400mA
LNB Voltage horizontal < 20V no load, > 17,3V at 400mA
Count of active satellite position:
DiSEqC 1.0/1.2 SAT POSITION / SAT OPTION
DiSEqC - Rotor Control
LNB Voltage vertical < 14V no load, > 11,5V at 400mA
LNB Voltage horizontal < 20V no load, > 17,3V at 400mA
Count of active satellite position:
DiSEqC 1.0/1.2 SAT POSITION / SAT OPTION
DiSEqC - Rotor Control
Power consumption:
< 15W at 12V
External PSU
Input:
110-240V AC / 50-60Hz / 0,6A
Output:
12V = / 3,0A
110-240V AC / 50-60Hz / 0,6A
Output:
12V = / 3,0A
