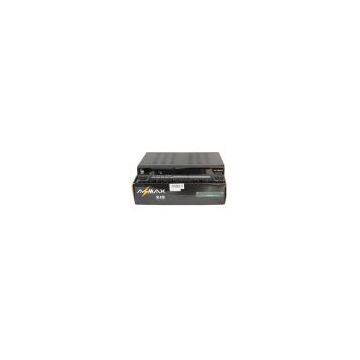

AZFOX S4S HD Satellite Receiver with IKS

IKS+ PATCH(Nagravision 2) + Support WIFI+ 2 USB PVR + HDMI 1080P Full HD / Support Dongle (IBOX/PC30/PC40 etc.) +LAN+CA +LED Display+Internet sharing(cccam/Newcam)

Supports MPEG-2, MPEG-4, H.264 and fully DVB compliant
- DiSEqC 1.0, 1.1, 1.2 and USALS
- Aspect ratio adjustment 4:3 (16/9 crop), 4:3 (16/9 letterbox), 16:9 (4/3 pillar box)
-User friendly OSD and operation
- Total 6,000 Channels Programmable
- Multi-language audio support   Multi-language menu text support
- Favorite channel selections
- Parental Guide and rating control
- EPG(Provider Electronic Program Guide) for On Screen Channel Information
- On-Screen Display with 65,536 Color
- Blind scan(Power Scan) & Powerful EPG
- Zoom Function in Pause
- Dolby Digital Bitstream Out through S/PDIF(Coaxal)
- Selectable output for 1080p, 1080i, 720p, 480p and 480i format
- Multiple Video Outputs
“HDMI, Component(YPbPr), Composit”
- USB 2.0 Host (Access to HDD, USB memory, Others etc) : 2 Port
- Upgrade Software & Update Channel Database through USB 2.0 Port and RS232
- MP3 File Play by USB 2.0
- PVR Ready via USB
- Multimedia file play by USB 2.0
-Multicas
- Ethernet : 10/100Mbps, DHCP Supporting
1. Tuner & Channel
Type   1  F Type, IEC169-24, Female
Frequency Rage  950MHz to 2150MHz
RF Impedance  75 Ohm unbanlanced
Signal Level   -65 to -25 dBm
LNB Power   13/18Vdc 5%, 0.5Amax, Overload Protected
22KHz Tone   Frequency :224KHz 2KHz, 0.6Vpp 0.2V
DiSEqC Control  Version1.0, 1.2, Tone burst A/B
Demodulation  QPSK, 8PSK
Input Symbol Rate  DVB-S QPSK : 1~45 Msps
 DVB-S2 8PSK/QPSK : 10~30Msps
 FEC Decoder   1/2, 2/3, 3/4, 3/5, 4/5, 5/6, 8/9, 9/10 in DVB-S2 mode. 1/2, 2/3, 3/4, 5/6 and 7/8 in DVB-S mode.
2. System & Memory
Main Processor  ALI3606
Flash Memory  4Mbytes
DDR II Memory   1G
Channel Capacity  Digital Channel: 6,000
Front   1-Key(Power), 7-SEGMENT DISPLAY"
3. MPEG Transport Stream & A/V Decoding
Transport Stream  13818-1 MPEG-2, H.264/AVC Transport stream Specification
Profile Level   MPEG-2 MP@ML, MP@HL, MPEG-4 H.264/AVC
Input Rate   Max. 90Mbit/s
Aspect Ratio   4:3, 16:9, Letter Box
Frame Rate   25Hz for PAL, 30Hz for NTSC
Video Resolution  576i, 576p, 720p, 1080i ,1080P
Teletext   Through VBI
Audio Decoding  MPEG-1 Layer 1 & 2, Dolby Downmix
Audio Mode   Single Channel/Dual Channel Joint Stereo/Stereo
Frequency Response  20~20kHz, <2dB
4. A/V & Date In/Out
HDMI   HD Video/Audio Output
RCA Output   CVBS, L, R Output(Yellow, White, Red Jack) with Volume Control
Component Video(YPbPr) Out
SPDIF   Dolby Digital Bitstream Out(Coaxal)
Data Interface   - RS-232, Bit Rate: 115,200baud

Connector: 9-pin D-sub Male type
- USB : USB 2.0, Type A Connector, 2Port
- Ethernet : 10/100Mbps, DHCP Supporting
5. Power Supply
 Input Voltage   AC 100V ~ 240V, 50Hz ~ 60Hz
 Power   AC 100V-240V
6. Physical Specification
Size(WxHxD): 280*180*59mm
Weight:GW1.6KG, NET 1.05KG
7. Environmental Condition
Operating Temperature  0 °C~40 °C
Storage Temperature  -10 °C~50 °C
Operating Humidity Range  10~85% RH, Non-condensing
Storage Humidity Range  5~90% RH, Non-condensing
