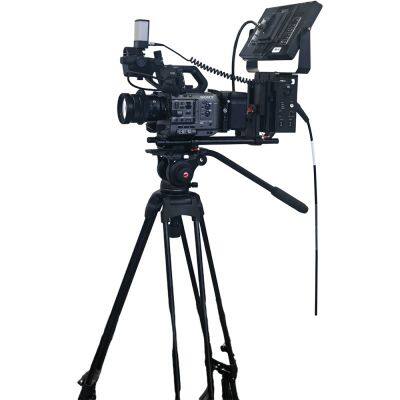

TYST ENG Camera Control System With Fiber Optic Power Supply and Intercom Function

Product Configuration

1 CH Forward 12G SDI Video with Local Loop Out

1 CH Reverse PGM Support 8Pin REMOTE

2.5mm REMOTE

3.5 Grip

Tally

Hirose ODC fiber 10KM

Product Description

This product is specially designed for SONY cameras that pursue excellent image quality for multi-camera production.The scene brings unparalleled convenience experience, especially suitable for multi-camera production environment in the field of broadcasting.

With the multi-camera collaborative setup, you will fully unlock the powerful performance advantages of Sony full frame and S35 cameras: the charming shallow depth of field effect can accurately focus on the subject while blurring the background, creating a professional feel akin to cinematography; the wide and unparalleled dynamic range ensures that every detail, whether highlights or shadows, is captured with exquisite detail; and the rich and vibrant color gamut perfectly reproduces true colors, making the image come alive.Whether its a live broadcast that’s exciting, a concert that’s moving, a TV show that’s gripping, or any other fast-paced, multi-camera collaboration. It can easily handle demanding production projects and deliver stunning film-level visual effects.

From the perspective of core functions, this product is ingeniously designed with a simple and highly flexible operation interface. Just one optic fiber (ODC) connection is required to adapt to almost all transmission systems, greatly simplifying the complex wiring process and ensuring stable and efficient signal transmission. Moreover, it thoughtfully supports unified adjustment and precise matching of image parameters for multi-cameras. With Sony’s professional RCP (Remote Control Panel), you can remotely control and finely adjust the image at any time, truly achieving seamless collaboration across multiple camera positions, making creation more effortless.

Technical Characteristics

1.   Supports ST-2082-1 (12G), ST-2081-1 (6G), ST-424 (3G), ST-292 (HD) and ST-259 (SD); compatible with DVB-ASI and AES10 (MADI);

2.   Clock recovery function; (the clock restorer weakens high-frequency jitter and uses pure low-jitter clocks to regenerate data completely);

3.   The clock restorer is locked to 11.88Gb ps, 5.94Gb ps, 2.97Gb ps, 1.4 85Gb ps or 1.001 fractional sub-rate and 270Mbps SMPTE rate;

4.   The signal input has automatic cable equalization (EQ) function, and the output has drive (CD) function;

5.   Support plug-in SFP optic modules, which can be replaced according to the actual needs of the site and different distances or interfaces corresponding optic modules;Support single mode single fiber/dual-fiber transmission distance 10KM (default);

6.   Support status light display;

7.   Support wide voltage 9-18V power supply, power plug with lock to prevent falling off during operation;

8.   Plug and play, no debugging;

Optic Characteristics

Wavelength: 1310nm (single mode dual fiber) 1270nm/1330nm (single mode single fiber)

Fiber type: 9/125um single mode

Rate: 12Gbps

Transmitter power: 0~-3dB

Receiver sensitivity: -12dB

Fiber connector: ODC

Transmission distance: single mode fiber, 10km
