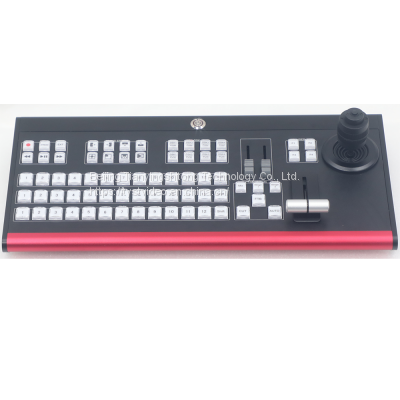

VMix Software Compatible Control Panel TYSTDirect Surface With Stream Deck Functionality
1 - 9 Units
10 - 29 Units
≥30 Units
- Beijing
- T/T L/C PayPal D/P Western Union Other
- 10 days
You May Like
-
TYST VMix Control Panel for Live Streaming on YouTube Facebook TikTok Broadcasting Control Switch Panel
-
TYST Video High Quality VMix 4ME Control Panel With 24 Channel PVW and PGM With PTZ Control Joystick
-
TYSTVideo 10 Channel up to 20 Channel VMix Control Panel Compatible With Wireless Tally Light Function
-
TYST Video VMix Replay Control Panel Switcher for Slow Motion Playback
-
TYST Vmix Live Streaming Equipment With Instant Replay Control Panel for YouTube Facebook TikTok Broadcasting
-
TYSTDirect Video Switching Console for VMix Reliable Control Surface for Studio or Remote Streaming
Product Details
| Type | Other, vMix control surface | Certification | ISO | |
| Function | Other, Video signal switching | Condition | New | |
| Video channel number | 24 channels (max) | Transport Package | Carton | |
| Specification | TY-1500HD | Trademark | TYSTVideo | |
| Origin | Beijing, China |
Product Description
Features
◆ It adopts integrated hardware design, an easy-to-use and easy-to-maintain fully embedded system with a streamlined structure, integrating director switching, resource recording, webcasting, mixing console, PTZ control and special effects transitions.
◆ Supports optional PGM/PVW 4 groups of 12 downstream key settings.
◆ Support 12-channel PGM and PVW switching preview.
◆ Support 4-way wired/wireless PTZ camera preset position, camera position pan and aperture zoom.

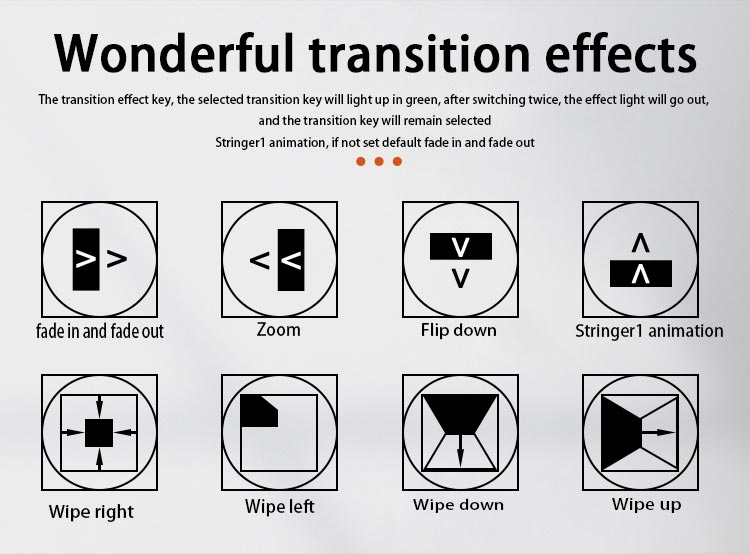

◆ Supporting with TYSTVideo live broadcast system to realize fade in and fade out, flying window, sliding image, push-pull and 2-way Stinger animation transition.
◆ Support one-key FTB key black output.
◆ Support 8-channel tally output,

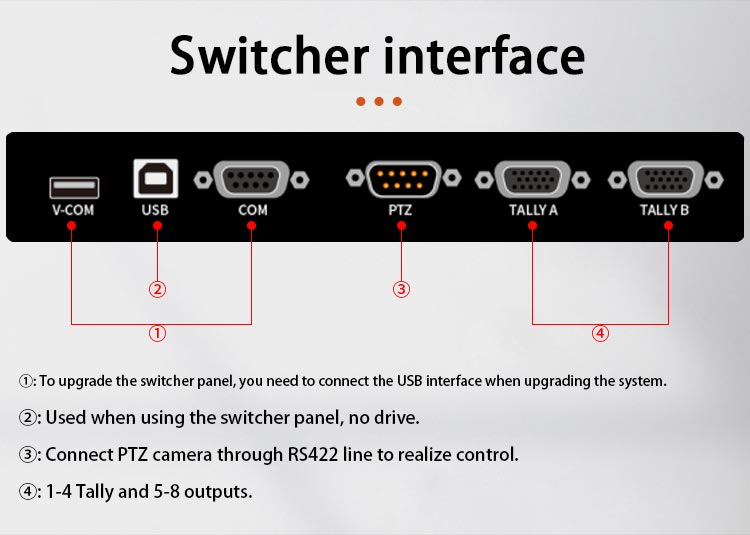

◆ Provide 15PIN PTZ control interface for PTZ.
Specifications
Name | vMix Control Panel |
Model | TY-1500HD |

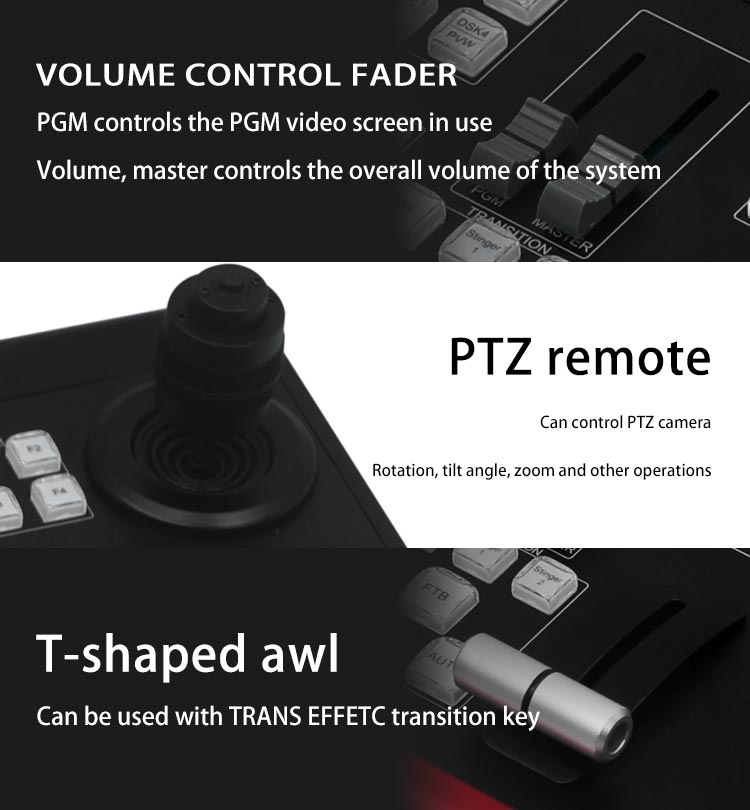

Function keys | 1 power button 71 backlit function keys 1 T-bar fader 1 gimbal joystick 2 volume keys |
Communication protocol | MIDI |
Size | 429*220*115mm (including joystick) |
Net weight | 2.06kg |
Standard configuration | Switcher panel x 1, USB cable x 1, manual x 1, warranty card certificate x 1. |
