380V / 400V / 415V 40Kva / 60Kva High Frequency Online UPS Three Phase

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	IWELL		Place of Origin	China
Model Number	C33F40K , C33F60K , C33F80K , C33F100K , C33F120K

Product Description

Delivery Time:7-10 working days
Certification:CE / FCC / ISO9001

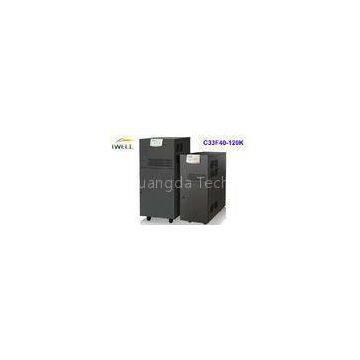

C33F Series 40 - 120Kva 3P - 3P Online High Frequency UPS for Data Center Parallel UPS

Applications:

Internet Servor Middle Data Center, Medium-scale network system? computing center, bank and securities,? business server group, Medium-scale office automation, precision equipment, etc.

Specification:

Online double conversion technology DSP control Advanced control with Adaptive Feed Forward Cancellation (AFC) Technology for very low harmonic distortion Output power factor 0.9 Input ?power factor 0.99 at 10% load Space-saving compact design Front access makes maintenance and replacement easily Control designed to withstand all kinds of loads Parallel redundant operation with up to 4 units Variety of communication options available

Model	C33F40K	C33F60K	C33F80K	C33F100K	C33F120K
PHASE	3-phase in / 3-phase out
CAPACITY	40KVA/ 36KW	60KVA/ 54KW	80KVA/72KW	100KVA/90KW	120KVA/108KW
INPUT
Nominal Voltage	3 x 380V (3Ph + N)/3 x 400V (3Ph + N)/3 x 415V (3Ph + N)
Acceptable Voltage Range	+15% or –20%
Frequency	50 / 60 Hz ±5 HZ
Total Harmonic Distortion (THDi)	< 2.5% @ 100% load?
Current Limitation	High overload: PFC Limit (discharging batteries)
Power Factor	1
INVERTER
Nominal Voltage	3 x 380V (3Ph + N)/3 x 400V (3Ph + N)/3 x 415V (3Ph + N)
Precision	Stationary: ±1%?
Frequency	50/60 Hz synchronised ±5HzWith mains absent ±0.05%
Max. Synchronisation Speed	±0.1 Hz/s
Waveform	Pure Sine wave
Total Harmonic Distortion (THDv)	< 1% (Linear Load) ; < 2.5% (Non-linear Load)
Phase Displacement	120o ±1% (balanced load) ; 120o ±2% (imbalances 50% of the load)
Dynamic Recovery Time	10 ms. at 98 % of the static value
Admissible Overload	Phase Overload: 125% for 10 min., 150% for 60s ; Total Overload: 112.5% for 10 min., 135% for 60s
Admissible Crest Factor	3:01	2.8:1	3.2:1
Admissible Power Factor	0.7 inductive to 0.7 capacitive
Imbalance Output Voltage @ 100% Unbalanced Loadt	<1%
Current Limit	300%
STATIC BYPASS
Type	Solid state
Voltage	3x400V (3Ph + N)3 x 380V (3Ph + N)/3 x 400V (3Ph + N)/3 x 415V (3Ph + N)
Frequency	50/60 Hz
Activation Criterion	Microprocessor control
Transfer Time	Zero
Admissible Overload	200% for 10 sec.
Transfer to Bypass	Immediate, for overloads above 150%
Retransfer	Automatic after alarm clear
MAINTENANCE BYPASS
Type	Without interruption
Voltage	3x400V (3Ph + N)3 x 380V (3Ph + N)/3 x 400V (3Ph + N)/3 x 415V (3Ph + N)
Frequency	50/60 Hz
Overall Efficiency (Line mode)	92.50%	93.00%	93%	93.50%	94%
BATTERY
?Battery Type (2x31)	External battery type depending on applications
Battery Numbers	2 x 31 pcs
Max. Charging Current	47A(Programable)
PHYSICAL
Dimension, D x W x H (mm)	770 x 450 x 1100	805 x 590 x 1320
Net Weight (without batteries) (Kg)	122	162	231	264	287
*Product specifications are subject to change without further notice.
