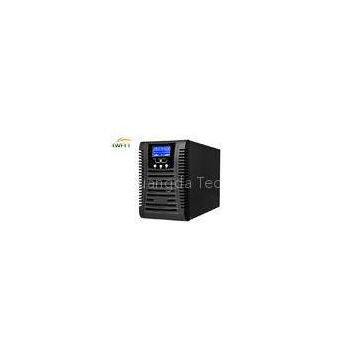

DSP 1000va 800w True Online UPS 220V UPS Power Supply For Communication

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Supply Ability 0 Piece / Pieces per Month
Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	IWELL		Place of Origin	China
Model Number	CE1K, CE1KS

Product Description

Delivery Time:7-10 working days
Certification:CE/FCC/ISO9001

CE1Ks Pure Sine Wave 1000va 800w ?Single Phase High Frequency Online UPS

DSP Technology

Active input power factor correction (PFC)

Wide range of input voltage and frequency

Zero power switch delay:?When the utility power fails, UPS will automatically switch from AC mode to battery mode with no delay, which will ensures stable power supply of operating system.?

Active Load Management

Sufficient Expansion Slots

The load power factor is 0.8

Model#	CE1K	CE1KS	Comments
Input voltage
Rated voltage?	220VAC
Phase	Single phase with ground
Turn on voltage range	(90±5～285±5)VAC
Bypass voltage range	80VAC~286VAC(default:80VAC~264VAC)	Could be adjusted by software.
Bypass low loss?	80VAC~220VAC(default:80VAC)
Bypass low comeback	Low loss+10VAC
Bypass high loss	220VAC~286VAC(default:264VAC)
Bypass high comeback	High loss -10VAC
Line low loss/comeback	(90±5) VAC /(110±5) VAC	load≤30％	PF=0.7
(110±5)VAC/(125±5)VAC	30％＜load≤60％
(120±5) VAC /(135±5) VAC	60％＜load≤70％
(140±5) VAC /(155±5) VAC	70％＜load≤80％
(160±5) VAC /(170±5) VAC	load＞80％
(90±5) VAC /(110±5) VAC	load≤30％	PF=0.8
(110±5) VAC /(125±5) VAC	30％＜load≤55％
(130±5) VAC /(145±5) VAC	56％＜load≤65％
(150±5) VAC /(165±5) VAC	66％＜load≤70％
(160±5) VAC /(175±5) VAC	load＞70％
Line high loss/comeback	(300±5)VAC/(285±5)VAC	0％≤load＜100％
Input frequency?
Rated frequency	50Hz
Frequency low loss	(40~49)±0.2Hz(default:46Hz)	Could be adjusted by software.
Frequency low comeback	Frequency low loss + 0.5Hz
Frequency high loss	(51~60)±0.2Hz(default:54Hz)
Frequency high comeback	Frequency high loss - 0.5Hz
Input power factor
Input power factor	0.99	220VAC,full R load
Generator	Support generator input	Generator rating≥2*UPS rating
Input current
Rated current	5A	220VAC,full RCD load
Input THDI	≤10%	220VAC,full RCD load, The mains THDI≤4%
Output protection
Rating protection	10A? AC fuse
Output power
VA/watt	1000VA/700W~800W	Could be adjusted by software.
Rated voltage	220VAC	Pure Sine wave
Voltage range	200VAC/208VAC/220VAC/230VAC/240VAC	Could be adjusted by software. 10% derating for 208VAC/200VAC.
Voltage regulation	±2％
Voltage distortion	≤7％	Full RCD load	220VAC;battery fully charged
≤4％	Full R load
DC offset	≤±200mV
Transient response	≤9％	R load 0％～100％～0％
≤6％	R load 20％～100％～20％
Transient recovery	≤60ms voltage recovery to 90%
