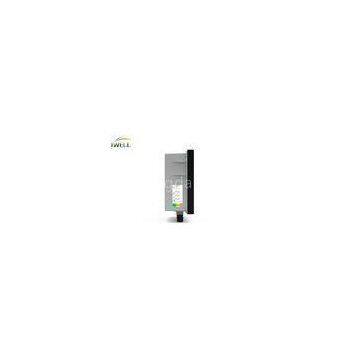

Small Rack mounted 3KW 220V On-Grid Solar Inverter 50Hz / 60Hz

FOB Price

Negotiable / Kilogram

1 Kilogram(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	IWELL		Place of Origin	China
Model Number	PTS 3000

Delivery Time:10-15 working days after received your payment
Certification:CE/ROHS/ISO/SGS

Small Rack-mounted 3KW 220V On-Grid Solar Inverter with LCD Display

Specifications:

Model Specification	PTS3000	PTS2500	PTS-2000	PTS1600	PTS1000
Input data
Max. DC power	3200W	2800W	2300W	1900W	1300W
Max. DC voltage	500V	500V	500V	500V	500V
Start voltage	100V	100V	100V	100V	70V
DC nominal voltage	360V	360V	360V	360V	360V
PV voltage range	100V-500V	100V-500V	100V-500V	100V-500V	70V-500V
MPP voltage range	120V-450V	120V-450V	120V-450V	120V-450V	100V-450V
Max. input current of tracker	15A	12A	12A	10A	10A
Number of MPP trackers/strings per MPP tracker	1/2	1/2	1/2	1/1	1/1
Output (AC)
Nominal AC output power	3000W	2500W	2000W	1600W	1000W
Max. AC apparent power	3000VA	2500VA	2000VA	1600VA	1000VA
Max. output current	15A	12.5A	10A	8A	5A
AC nominal voltage; range	220V/230V/240V; 180Vac-280Vac	220V/230V/240V;? 180Vac-280Vac	220V/230V/240V; 180Vac-280Vac	220V/230V/240V;? 180Vac-280Vac	220V/230V/240V; 180Vac-280Vac
AC grid frequency; range	50,60H;±5 Hz	50,60H;±5 Hz	50,60H;±5 Hz	50,60H;±5 Hz	50,60H;±5 Hz
Phase factor at rate power	1	1	1	1	1
THDI	<3%	<3%	<3%	<3%	<3%
AC connection	Single phase	Single phase	Single phase	Single phase	Single phase
Efficiency
Max. efficiency	97%	97%	97%	97%	97%
Euro - eta	96.50%	96.50%	96.50%	96.50%	96.50%
MPPT efficieny	99.50%	99.50%
