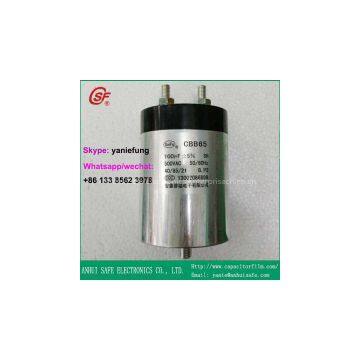

Dry Type CBB65 Capacitor 450VAC 100UF

Dry Type CBB65 Capacitor 450VAC 100UF

The capacitor takes heavy-edge metallizedAl/Zn PP film or web-like safety film as dielectric. The elements are tightwinded by high-velocity winders and canned in aluminum cases. Refined castoroil is adopted as impregnation agent treated in vacuum and high temperaturecondition. Those make a more reliable performance and longer lifespan for acapacitor. Meanwhile the second generation of mechanical anti-explosion designis selected as blast-proof secure measure for our capacitors. The reliabilityis more affirmatively enhanced.

CBB65 series motor run capacitor hasfeatures of small size, light weight, small tangent in waste angle, and goodself-concrescence. Applied to the starting and better working of sing-phasemotor in 50Hz(60Hz) frequency AC power system.

Technical Specification

Executive standard: GB36671-997

Technical features:

Climate type: 40/70/21

Capacitance tolerance: +-50%

LR: >=3000M&Omega. &muF

Dielectric dissipation Factor:Tg&delta<=0.002(50Hz-100Hz)

Rated Voltage: 200VAC,250VAC,370VAC,400VAC,440VAC,450VAC,500VAC

Norminal Capacitance:3,4,5,7.5,10,12.5,15,17,

20,22.5,25,30,35,40,45,50,55,60,70,80,100,

25+5,30+5,35+5,50+5,60+5,70+5,80+5...MDF,microfarad
