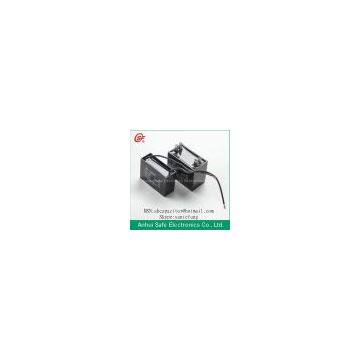

Mini Box Type Capacitor CBB61

Brand Name	CSF,SAIFU		Place of Origin	China
Model Number	CBB61

Mini Box Type Capacitor CBB61

This capacitor uses polyprpylene film and reticulation safety film (thickened by zinc and aluminum) as a medium, encapsulated by burnt-prevent epoxy resin and square ABS plastic. It is small, reliable and safe, also has stable electric and long working life.Fan capacitor CBB61 widely used as the start-up and running capacitor that is special for electric appliances such as electric fan,ventilators and exhaust fanners. Standard:IEC 60252-1:2001 Technical features: Climate type:40/70/21 or 40/85/21 Capacitance tolerance:± 5% I.R:≥3000S(MΩ@µF) Dielectric dissipation factor:tgδ≤0.002 (50Hz~100Hz) Application requirements: Altitude:≤2000m Residual voltage in application: less than 10% of rated voltage. Allowed maximum voltage: less than 1.1 times of rated voltage Permissible maximum current: less than 1.3 times of rated current. Dimensions & specifications (mm) Rated voltage:200VAC,250VAC,370VAC,400VAC,440VAC,450VAC,500VAC Nominal capacitance:1uf,1.2uf,1.5uf,2uf,2.5uf,3uf,3.5uf,4uf,4.5uf, 5uf,6uf,6.5uf,7uf,8uf,10uf,12uf,14uf...... Technical Specifications Standard GB3667-1997 Climate type 40/70/21 Capacitance tolerance 5% I.R.: ≥3000S@µF I.R Dielectric dissipation factor tgδ≤0.002 (50Hz~100Hz) Altitude ≤2000m Residual voltage in application less than 10% of rated voltage. Allowed maximum voltage less than 1.1 times of rated voltage Permissible maximum current less than 1.3 times of rated current.
