DC-Link High Voltage Capacitor
- 3000 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | CSF,SAIFU,OEM | Place of Origin | China | |
Product Description

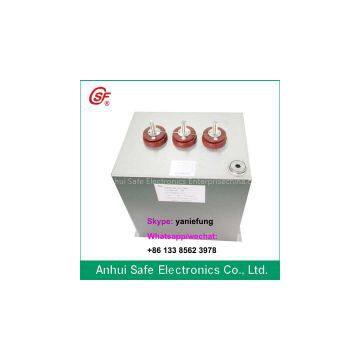

DC-Link High Voltage Capacitor
1)leading capacitor manufacturer in China
2)Cn=0.001~10000Uf Un=600~10000VDC
3)Special Design For You
4)UL Rohs CQC ISO Reach
Products:
The capacitor for power electronic are usefo metal-based thin-film without a sense of style winding, special spray goldprocess, molded case or Myra tape packaing, fire-retardant exposy resin seal,copper bolts, copper nuts or inserts leads
Features:
Stability of high frequency characteristicsof a good - strong – over current characteristics of a small inductor
Uses:
It is mainly used for IGBT,Photovoltaic,UPS,Inverter, Electroplating power supply,Inverter welder,Inverter and induction heating equipment,Solar, Welding, Magnetizater, Filter,Pulse, Inverter, Filter and other Electric and Electronic equipment used for filtering.
Reference Standard:
Enterprise standards in line with IEC61071GB17702.1 CSF
Temperature Range | -40C ~ +85C (+105C) |
Capacity Range | 0.47 ~ 12000Uf |
Capacitance deviation | 5%(J) ; 10% (K) |
Voltage | 200 ~ 15000VDC |
Dielectric | 1.5UN/60S |
Dissipation | tgδ≤0.002(at 1KHz) |
Insulation Resistance | CxRs≥5000S(at20°C 100V.DC 60S) |
Shock current capability | Dv/dt>50v/us |
Flammability | UL94V-0 |
Stray inductance | ≤30Nh |
Effective Current | 10 ~ 80A |
Reference Standard | Enterprise standards in line with IEC61071 GB17702.1 CSF |
