Home > Products > Wood CNC Router > JK-1218 Wood Engraving Machine

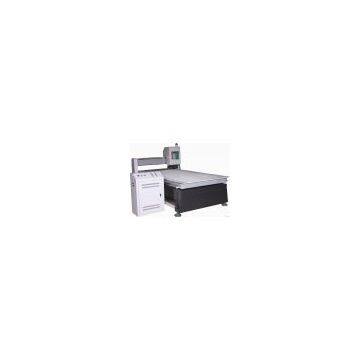

JK-1218 Wood Engraving Machine
Negotiable
/ Set
1 Set(Min.Order)
- 50 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | Jingke | Place of Origin | China | |
| Model Number | JK-1218 |
Product Description
JK-1218 Wood Engraving Machine:
Machine features for JK-1218 Wood Engraving Machine:
1. Particular style, competent for elaborate engraving and cutting.
2. The lathe bed is wholly cast with iron to ensure high stability. Three axes all adopt linear square rail.
4. NCSTUDIO or DSP control system can be chosen at your decision.
5. Be compatible with type 3, Artcut, Artcam software.
6. Memory to ensure the processing point when the blade is broken or postpone situation. Specific saving mode of different points.
Technical parameter:
| MODLE | JK-1218 |
| Work dimensions | 1200 x 1800 x 80mm |
| Body dimensions | 1500 x 2200 x 1500mm |
| Z-axis working area | 80mm |
| Max. Feeding height | 120mm or bigger |
| Cut thickness of material | 40mm |
| Max. Speed | 6000mm/min |
| Working speed | 0 - 4000mm/min |
| Mechanical precision | 0.01mm |
| Software | Artcam , Artcut, Type3 software |
| Power source | AC 220/50Hz |
| Driver type | stepper motor |
| Spindle | 3KW variable speed |
| Cooling type | water-cooled |
| Spindle speed | 24,000rpm |
| Blade diameter | 1 - 6mm |
| Control system | NCSTUDIO |
| Command | HPGL,G code, u00, mmg, plt |
| N.W. | 600KG. |
| G.W. | 650KG. |
