JK-3040 Metal Engraving Machine
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | Jingke | Place of Origin | China | |
| Model Number | JK-3040 |
Product Description
JK-3040 Metal Engraving Machine:

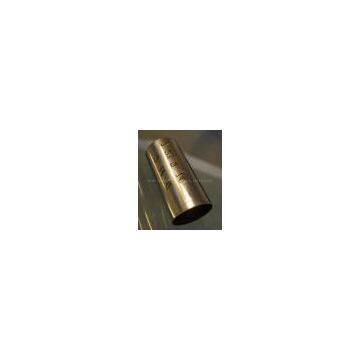

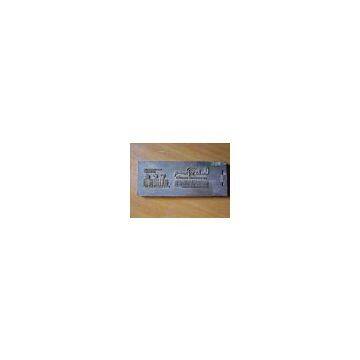

Usage:can be used to engrave and cut on stone,copper, aluminum, stainless steel,iron,PCB and wood, plastic, rubber and so on material.
Machine features for JK-3040 Metal Engraving Machine:
1. Particular style, competent for elaborate engraving and cutting.
2. 1.2KW water-cooled spindle motor.
3. The lathe bed is wholly cast with iron to ensure high stability. Three axes all adopt linear square rail.
4. Furnish with DSP control system
5. Be compatible with type 3, Artcut, Artcam software.
6.Memory to ensure the processing point when the blade is broken or postpone stitution. Specific saving mode of different points.
Technical parameter:
| Modle | JK-3040 |
| Machine body | whole cast iron or cast aluminum |
| Work dimensions | 300×400mm |
| Body dimensions | 600×700×600mm |
| Z-axis working area | 60mm |
| Max feeding height | 100mm or bigger |
| Cut thickness of material | 30mm |
| Max.speed | 6000mm/min |
| Working speed | 0-4000mm/min |
| Mechanical precision | 0.01mm |
| Software | type3,Artcut,Artcam software |
| Power | 1500W |
| Working voltage | AC 220V/50Hz |
| Drive type | stepper motor |
| Spindle | 1500W variable speed,water-cooled |
| Spindle speed | 0-24,000rpm |
| Blade diameter | 1-6mm |
| Control system | DSP (USB interface) |
| Command | HPGL.G code,u00,mmg,plt |
