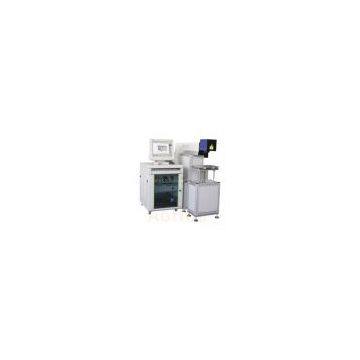

JK-50W Laser Marking

Performance Features:

1. The machine takes YAG lamp-pumped solid laser device as the light source. By 2D fast-speed scanning lens swinging as the scheduled angles under the controlling of the computer, the laser focus on the surface of the work piece by F-θ lens to form images and realize marking and graph processing.

2. YAG lamp-pumped laser marking machine has the longest application time and the most extensive usage areas and is the most mature technology at present.

3. By using fast-speed scan lens, it can scan the graph in shortest time & finish fine marking process.

4. It can configure auto clamp and baiting production line as user’ s requirements.

5. It can mark data, series number & bar code automatically.

6. Available for data communications, networking

Application scope and ma

       Automobile Parts: Pistons, Piston Rings, Gears, Shafts, Bearings, Clutch, Lights, etc.

       Electronic Components: Resistance, Capacitance, Chips, Printed Circuit Boards, Computer Keyboard, etc.,

      Mechanical Parts :  Bearings, Gears, Standard Parts, Motors, etc.,

      Instrument : Panel Signs, Nameplates, Precision Equipment, etc.,

      Hardware Tools: Knives, Tools, Measuring Tool, Cutting Tool, etc.

      Daily Necessities: Handicrafts, Zipper, Key Holder, Sanitary Ware, etc.

Technical Data:

      Laser Output Power: 50W

      Standard Marking Scope: 110 mm×110mm

      Marking Depth:  0.01~0.3mm (adjustable)

      Marking Speed: 7000mm/second

      Repeated Accuracy:  0.001mm

      Laser Wavelength: 1064μm

      Minimum Line Width: 0.015mm

      Power Supply : 380V/50HZ

      Machine Power: 5 KW
