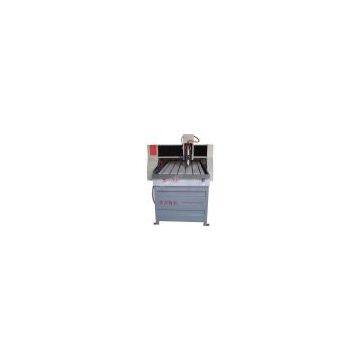

JK-6090 Metal Engraver/CNC Router

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Jingke		Place of Origin	China
Model Number	JK-6090

JK-6090 Metal Engraver/CNC Router:

Features and performance for JK-6090 Metal Engraver/CNC Router:

1. can be used to carve letters or designs and work mould on iron, steel, bronze,aluminum,ect.

2.The DSP control system uses 128M memory and supports USB disk direct output, which is more advanced and practical.

3.The independent control cubicle is advantageous for maintenance and be much safer.

4.Main spindle features:

2.2KW frequency conversion water cooling spindle with long use life and big power.

Permanent power main spindle can guarantee powerful processing under any random rotational speed.

5.Memory to insure the processing point when the blade is broken or postpone situation.

PARAMETERS :

Model	JK-6090
Machine body	whole cast iron
Work dimensions	600×900mm
Z-axis working area	200mm
Body dimensions	800×1200×1200mm
X/Y/Z movement	Precision ball screw/Germany
Guide linear	20 square rail/Taiwan
Cut thickness of material	0-10cm
Max.Speed	6000mm/min
Working speed	0-4000mm/min
Machining pass	5mm
Mechanical precision	0.015mm
Software	Type3,Artcut,Artcam software
Power source	AC 220V/50-60Hz
Driver type	stepper motor
Spindle power	2.2KW variable speed,water-cooled
Spindle speed	0-24,000rpm
Tool diameter	1-12.7mm
Collet	Collet ER2012.7mm, 6mm, and 3.175mm
Control system	DSP0501,128M
Command	HPGL.G code,u00,mmg,plt
