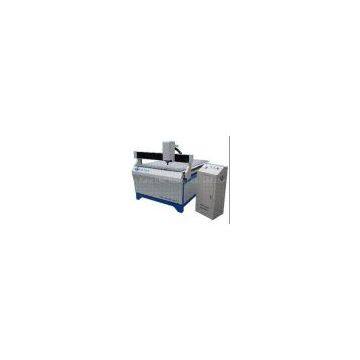

JK-1212 Wood Engraving machine

FOB Price

Negotiable / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Jingke		Place of Origin	China
Model Number	JK-1212

JK-1212 Wood Engraving machine:

Features for JK-1212 Wood Engraving machine:

Particular style, competent for elaborate engraving and cutting.

The lathe bed is wholly cast with iron to ensure high stability. Three axes all adopt linear square rail.

Be compatible with type 3, Artcut, Artcam software.

Memory to ensure the processing point when the blade is broken or postpone situation. Specific saving mode of different points.

Structure	Cast iron
X, Y axis travelling area	1200 ×1200mm
Z axis travelling area	120mm
Machine size	1360×1550mm
X-Y-Z movement	High precision ball screw drive/Gemany
Guide	Linear square/Taiwan
Max.speed	12m/min
ing speed	10m/min
Working precision	0.02mm
Repositioning accuracy	0.025mm
Engraving command	G code * u00* mmg* plt
Software environment	windows98/2000/xp
Working voltage	AC220V/50-60Hz, 2-phase
Spindle power	1.5kw water-cooled motor
Spindle speed	0-24000rpm
Driver motor	Stepper motor
Software	Type 3, Artcut , Artcam software
Control system	DSP0501
Collet	ER20-12.7mm,6mm,3.175mm
No.of spindle heads optional	one or two heads
N.W.	400KG.
G.W.	450KG.
Packing size(wooden crate)	1.81.81.7m
