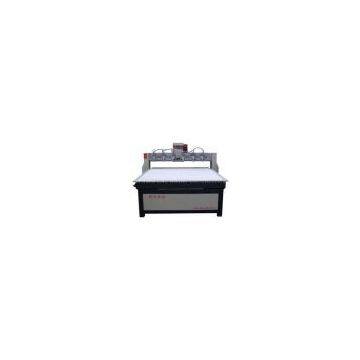

JK-1618 wood engraving machine/six heads
Negotiable
/ Set
1 Set(Min.Order)
- 50 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | Jingke | Place of Origin | China | |
| Model Number | JK-1618 |
Product Description
JK-1618 wood engraving machine/six heads:
Specification of JK-1618 wood engraving machine/six heads:
| Structure | Cast iron |
| X, Y axis travelling area | 1600 ×1800mm |
| Z axis travelling area | 120mm |
| Machine size | 1860×2650mm |
| X-Y-Z movement | High precision ball screw drive/Gemany |
| Guide | Linear square/Taiwan |
| Max.speed | 20m/min |
| ing speed | 15m/min |
| Working precision | 0.02mm |
| Repositioning accuracy | 0.025mm |
| Engraving command | G code * u00* mmg* plt |
| Software environment | windows98/2000/xp |
| Working voltage | AC220V/50-60Hz, 2-phase |
| Spindle power | 1.5kw*6 water-cooled motor |
| Spindle speed | 0-24000rpm |
| Driver motor | Stepper motor |
| Software | Type 3, Artcut , Artcam software |
| Control system | DSP0501 |
| Collet | ER20-12.7mm,6mm,3.175mm |
| No.of spindle heads optional | six heads |
| Working area | 250*1800mm/spindle head |
| N.W. | 700KG. |
| G.W. | 800KG. |
| Packing size(wooden crate) | 3.1*2.3*1.8m |
