Home > Products > Wood CNC Router > JK-6090 Wood Engraving Machine

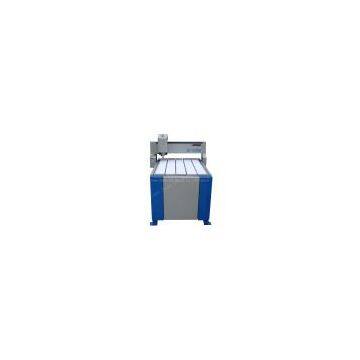

JK-6090 Wood Engraving Machine
Negotiable
/ Set
1 Set(Min.Order)
- 50 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
You May Like
Product Details
| Brand Name | Jingke | Place of Origin | China | |
| Model Number | JK-6090 |
Product Description
JK-6090 Wood Engraving machine:
Features for JK-6090 Wood Engraving Machine:
Usage:can be used to engrave and cut letters,graph & 3D designs one wood, plastic, pvc,
plywood, MDF etc
Applicable profession: furniture, wood doors, cabinet, advertisement, decoration.
| Model | JK-6090 |
| Machine body | whole cast iron |
| Work dimensions | 600×900mm |
| Z-axis working area | 200mm |
| Body dimensions | 800×1200×1200mm |
| X/Y/Z movement | Precision ball screw/Germany |
| Guide linear | 20 square rail/Taiwan |
| Cut thickness of material | 0-10cm |
| Max.Speed | 6000mm/min |
| Working speed | 0-4000mm/min |
| Machining pass | 5mm |
| Mechanical precision | 0.015mm |
| Software | Type3,Artcut,Artcam software |
| Power source | AC 220V/50-60Hz |
| Driver type | stepper motor |
| Spindle power | 2.2KW variable speed,water-cooled |
| Spindle speed | 0-24,000rpm |
| Tool diameter | 1-12.7mm |
| Collet | Collet ER2012.7mm, 6mm, and 3.175mm |
| Control system | DSP0501,128M |
| Command | HPGL.G code,u00,mmg,plt |
