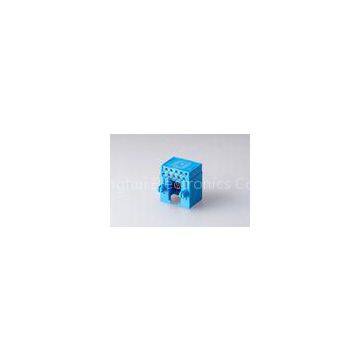

Color Blue 90 Degree Plastic RJ45 Female Jack 8P8C Single Port No Shield

Color ?Bule 90 Degree Plastic RJ45 Female Jack ?8P8C Single Port no shiled

Specifications

ELECTRICAL:

1. VOLTAGE RATING:125 VAC RMS.
2. CURRENT RATING:1.5 AMP.
3. CONTACT RESISTANCE:50 milliohms max.
4. INSULATION RESISTANCE:500 megohms min @ 500V DC.
5. DIELECTRIC WITHSTANDING
RESISTANCE:1000V AC RMS 50Hz. 1min.

MECHNICAL:

1. HOUSING MATERIAL:glass filled polyester(UL94V-0).
2. CONTACT MATERIAL:phosphor bronze T=0.46mm (C5 100).
3. PLATING:glod plating over nickel.
4. DURRABILITY:750 cycles min.
5. PCB RETENTION PRE-SOLDER:1 LB min.
6. PCB RETENTION POST-SOLDER:10 LB min.

ENVIRONMENTAL:

1. STORAGE:-40℃ TO +85℃.
2. OPERATION:0℃ TO 70℃
3. WAVE SOLDER TEMPERTURE:230-250℃(5-10 seconds)

MATES WITH MODULAR PLUG CONFORMING TO FCC PART F.

Drawing

Color ?Bule 90 Degree Plastic RJ45 Female Jack ?8P8C Single Port no shiled

( PHC )

Why Choose PengHui

Quality :

Except the plating , From Design tooling , stamping , Injection molding , assemble , Testing , packing .All the step are doing by ourself . So we can control the quality .

Unit?Price
?

Charge?only?35% ~ 60%?of?Pulse?, Wurth(Midcom),?Bothhand?Belfuse,?Tyco,?Halo,....Etc
?
All?the?step?are?doing?by?ourself.?So?we?can?control?the?cost?
PHC?have?more?than?30?units?automation?equipments?to?product?as?possible
PHC?consists?of?3?subordinations?,?located?partly?in??Hunan?,Hubei?,Guangdong .
With?large?scale?of?production?lines,?we?can?reach?to?cost?reduction?at?the?most?extent

Production&Testing?
?
PHC?have?more?than?30?units?automation?equipments?to?product?as?possible
PHC?Every??Magnetic?RJ45?tested?3times??(not?just?batch?tested)
PHC?Every?SMT?part?used?Automation?testing?and?packing.

Service
?
PHC?Offer?good?pre-sales?&?after-sales?service?&Strong?technical?support

1. New?Project:?Strong?technical?and?ideal?support?your?new?design

2. Existing?projects:?Try?to?help?customer?to?save?the?cost?to?offer?the?good?quality?product?and?save?time.

3.?Free?Samples:3-5?PCS?of?each?part?number.

4.?Shipping?Fee?:We?can?get?80%?off?from?DHL/UPS/TNT/FedEx,?keeping?safe?and?fast.

5.?Customer?complaint:24-48?hours?reply?8D?report.

6.?Warranty?:?24?months?(?Merchandise?are?promised?to?be?promptly?returned,?replacement,or?repair?kits?if?

customers?are?not?satisfied)

Design &Technical?strength?

We?have?many?more?than?20years?experience?in?connector?industry?engineer?can?support?your?new
project.Design?a?new?tooling?time : 30-45?workdays?

PATENTS PRODUCTS IN China

Hardware Mold Equipment

Wish?To?Be?Your?Best?Supplier?and?Supporter?In?Your?Lan?connector?Solutions
?
