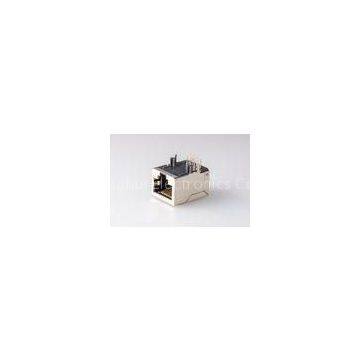

Shield Side Entry Female RJ45 Network Connector , 8p8c Telecom PCB Jack ( RoHS )

Shield Side Entry RJ45 Female Network Connector , 8p8c Telecom PCB Jack ( RoHS )

Specifications

Electrical?Requirement:?

1.?RATING?VOLTAGE:?150V?AC?MAX.?

2.?RATING?CURRENT:?1?AMPHERES?MAX.?

3.?CONTACT?RESISTANCE:?[30]?MILLIOHMS?MAX.?(INITIAL),?[50]?MILLIOHMS?MAX.?(FINAL).?

4.?DIELECTRIC?WITHSTANDING?VOLTAGE:?NO?CREEPING?DISCHARGE?OR?FLASHOVER?SHALL?OCCU ? ? R.?

5.?CURRENT?LEAKAGE:?1MA?MAX.?[500]VAC?FOR?1MINUTE.?

6.?TEST?BETWEEN?ADJACENT?CIRCUITS?OF?UNMATED?CONNECTOR?

MECHNICAL:

1.?HOUSING?MATERIAL:GLASS?FILLED?POLYESTER(UL94V-0).
2.?CONTACT?MATERIAL:PHOSPHOR?BRONZE?T=0.46MM?(C5?100).
3.?PLATING:GLOD?PLATING?OVER?NICKEL.
4.?DURRABILITY:750?CYCLES?MIN.
5.?PCB?RETENTION?PRE-SOLDER:1?LB?MIN.
6.?PCB?RETENTION?POST-SOLDER:10?LB?MIN.

ENVIRONMENTAL:

1. STORAGE:-40℃ TO +85℃.
2. OPERATION:0℃ TO 70℃
3. WAVE SOLDER TEMPERTURE:230-250℃(5-10 seconds)

MATES WITH MODULAR PLUG CONFORMING TO FCC PART F.

Drawing

Shield Side Entry RJ45 Female Network Connector , 8p8c Telecom PCB Jack ( RoHS )

( PHC )
