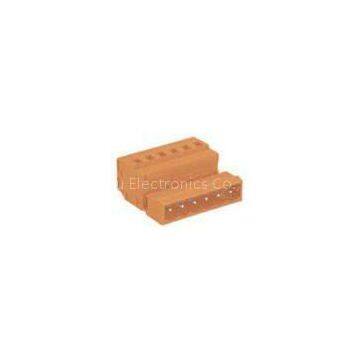

IEC 250V 12A UL 300V 15A Male MCS Connector with Spring - Cage Clamp Orange
Negotiable
/ Piece
1 Piece(Min.Order)
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
2 -24 Pole 250V 12A 300V 15A Male MCS Connector With Fixing Flanges SP458
-
250V 12A 300V 15A Female Spring Cage Clamp MCS Connector 8 - 9 mm Strip
-
250V 12A 300V 10A Straight Pin MCS Connector With Spring Clipping Orange
-
400V 12A Orange Spring Cage Clamp MCS Connector with 7.62mm Pitch
-
2 - 24 Pole 24 - 16AWG MCS Connector , 3.81mm Pitch SP435 SP438
-
2 - 24 Pole 0.2-1.5mm2 / 24 - 16 AWG Coupled MCS Connector SP435 / SP438
Product Details
| Brand Name | SUPU | Place of Origin | China | |
| Model Number | SP458 |
Product Description
IEC 250V 12A UL 300V 15A Male MCS Connector with Spring - Cage Clamp Orange
Quick details
2- 24 male connectors with spring-cage clamp
Wire Range(MM2/AWG)?0.2-2.5mm2
250V?12A?300V??15A
Strip length?8-9mm.
Order No.:458406(orange).
Specifications:
Part Name: | 2- 24 male connectors with spring-cage clamp |
|||
Wire Range(MM2/AWG): | ?0.2-2.5mm2. |
|||
| ? | IEC | UL | CSA | ? |
Rated Voltage(V): | 250V | ????? 300V | 300V | ? |
Rated Current (A): | 12A | ?????? 15A | 15A | ? |
Size(mm): | ? | |||
Strip length (mm/in): | ?8-9mm |
|||
Wires: | ?Applied for any kind of wires |
|||
Connect Ways:: | ?spring-clipping |
|||
Entry Type: | ? | |||
Wire?numbers: | ? | |||
potential no: | 24 |
|||
Peak Voltage: | 4.0KV |
|||
Weight(g): | ? | |||
pollution severity: | 3 |
|||
UL94 Insulation Material: | V 0 or V 2 |
|||
Insulation Material: | PA |
|||
Color: | orange |
|||
Pin size: |
Attachment:
Picture | Name | xinghao |
jianyijiexiangongju | 450014 |
|
kuajieqiao | 450012 |
