Home > Products > Spring Terminal Block > 800V 32A 4 Conductor Ground Spring Terminal Block 0.2 - 4.0mm2 / 24 - 14 AWG
800V 32A 4 Conductor Ground Spring Terminal Block 0.2 - 4.0mm2 / 24 - 14 AWG
- T/T L/C D/P D/A
- 7 days
You May Like
-
IEC 800V 18A, UL 600V 24 - 16 AWG 4 Conductor Through Spring Terminal Block Of Front - Entry
-
750V 32A 300V 20A Transformer Terminal Block Screw - Clipping SUP 4/1
-
2 Pole Electrical 300V 20A 20 - 10 AWG Transformer Terminal Blocks Typ SUP 4/2
-
Screw - Clamping 750V 32A Transformer Terminal Blocks with 2 Pole SUP 10 / 2
-
1 Way 24 - 10 AWG Fuse Transformer Terminal Block For Any Kind Of Wire
-
600 Volt 30A 3 Way Transformer Terminal Block Connector With 3 Pole
Product Details
| Brand Name | SUPU | Place of Origin | China | |
| Model Number | 204947 |
Product Description
Certification:ROHS, ISO9001, COC, CE, CB, TUV

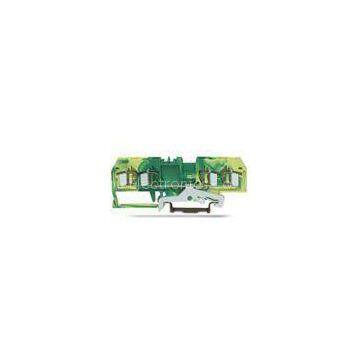

800V 32A 4 Conductor Ground Spring Terminal Block 0.2 - 4.0mm2 / 24 - 14 AWG SP204
Quick details
4-Conductor Ground Terminal Block.
Wire Range 0.2-4.0mm2/24-14AWG
800V 32A 600V 20A 25A
Strip length 9-10 mm/0.33in
Order No.:204947(Green-Yellow)
◆?Use SUPU spring clipping technology, have the advantages of reliability, shock resistance, and maintenance-free, etc.
◆?Operate easily, only need a screw driver.
◆?Print marker card as customer\'s requests.
◆?Mounted on SP35 standard rail (steel or aluminum).
|
Article: |
4-Conductor Ground Terminal Block |
|||
|
Wire Range: |
0.2-4.0mm2/24-14AWG |
|||
|
IEC |
UL |
CSA |
EN |
|
|
Rated Voltage: |
800V |
600V |
600V |
800V |
|
Rated Current: |
32A |
20A |
25A |
32A |
|
Size (mm/in): |
6×86×29mm/0.236×3.39×1.14 in |
|||
|
Strip length (mm/in): |
9-10 mm/0.33in |
|||
|
Wires: |
Applied for any kind of wires |
|||
|
Connect Ways: |
Spring-clipping |
|||
|
Entry Type: |
Front-entry |
|||
|
Peak Voltage: |
8KV |
|||
|
Weight: |
||||
|
Pollution Severity: |
3 |
|||
|
UL94 Insulation Material: |
V 0 or V 2 |
|||
|
Insulation Material: |
PA66 |
|||
|
Color: |
Green-Yellow |
|||
|
Packing: |
100PCS |
|
Name |
Order No. |
|
End-and Intermediate |
204131(Gray)204132(Orange) |
|
Adjacent jumper |
?204301 |
|
Protective Warning Marker |
?204701 |
