400V 16A 0.2 - 2.5mm2 / 24 - 14 AWG Female Connector With Fixing Flanges
- T/T L/C D/P D/A
- 7 days
You May Like
-
Feed - Through Plug 400V 16A MCS Connector With Right Angle Pin
-
Spring Clipping Rail-mounted MCS Connector 2 - 24 pole SP450 SP458 Gray
-
Right Angle Pin 12A 15A MCS Connector with Long Contact Pins
-
Straight Solder Pin 300V 16A 24 - 14 AWG MCS Connector SP450 SP458 Gray
-
250V 300V 16A 15A 24 - 14AWG MCS Connector 5.0mm Pitch SP450 SP458
-
24 - 14 AWG feed-through plug terminal MCS Connector with Locking Device
Product Details
| Brand Name | SUPU | Place of Origin | China | |
| Model Number | SP475 |
Product Description
Certification:ROHS, ISO9001, COC, CE, CB, TUV

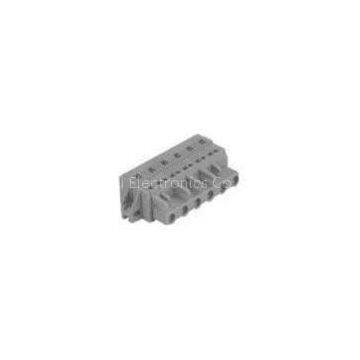

400V 16A 0.2 - 2.5mm2 / 24 - 14 AWG Female Connector With Fixing Flanges
Quick details
2-24 Female Connectors With Fixing Flanges.
400V 16A 300V 15A
Pitch 7.5mm/0.295in
Wire Range 0.2-2.5mm2/24-14AWG.?
Order No.:475106/010(Gray).
◆ As PCB Connectors,
◆?As feed-through plug connector,
◆?As plug connectors on rail-mounted terminal blocks,
◆?As plug-in connection for flying leads for different types of assembly,
◆?Applied in PCB, heat pump controller,?the door control of a lightrail.
|
Part Name: |
2-24 Female Connectors With Fixing Flanges |
|||
|
Pitch: |
7.5mm/0.295in |
|||
|
IEC |
UL |
CSA |
||
|
Rated Voltage: |
400V |
300V |
300V |
|
|
Rated Current: |
16A |
15A |
15A |
|
|
Wire Range |
0.2-2.5mm2/24-14AWG??? |
|||
|
Available Poles: |
2-24 |
|||
|
Strip length (mm/in): |
8-9mm/0.33 in |
|||
|
Wires: |
Applied for any kind of wires |
|||
|
Connect Ways: |
spring-clipping |
|||
|
Peak Voltage: |
4KV |
|||
|
Weight: |
g |
|||
|
Pollution Severity: |
3 |
|||
|
UL94 Insulation Material: |
V 0 or V 2 |
|||
|
Insulation Material: |
PA66 |
|||
|
Color: |
Gray |
|||
|
Packing: |
100PCS |
|
Picture |
Name |
Order No. |
|
?Mounting Tool |
?450014 |
|
|
?Jumper |
?450012 |
