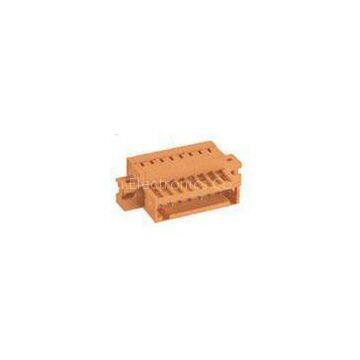

Wago Male 250V 300V 10A MCS Connector With Fixing Flanges , PA66
- T/T L/C D/P D/A
- 7 days
You May Like
-
3.5mm Pitch Male MCS Connector With Spring Cage Clamp SP435 SP438 Series
-
Female 400V 16A 24 - 14AWG MCS Connector With Pitch 7.5mm SP475 SP478
-
24 - 14AWG Right Angle Pin MCS Connector , 2 - 24 Poles
-
Female Feed-through Plug MCS Connector on Rail - Mounted Terminal Blocks
-
400V 12A 300V 15A PCB MCS Connector With Fixing Flanges 8mm - 9mm Strip Orange
-
400V 12A Orange Spring Cage Clamp MCS Connector with snap in mounting feet
Product Details
| Brand Name | SUPU | Place of Origin | China | |
| Model Number | SP438 |
Product Description
Wago Male 250V 300V 10A MCS Connector With Fixing Flanges , PA66
Quick details
Orange
2-24 Male connectors with spring-cage clamp.
Pitch 3.81mm/0.15in
250V 300V 10A
Wire Range 0.2-1.5mm2/24-14AWG.
2-24 Male connectors with spring-cage clamp with fixing flanges 100% protected against mismating
Order No.:438406/010(Orange).
◆ As PCB Connectors,
◆As feed-through plug connector,
◆ As plug connectors on rail-mounted terminal blocks,
◆ As plug-in connection for flying leads for different types of assembly,
◆ Applied in PCBs, heat pump controller,the door control of a lightrail.
Article: | 2-24 Male connectors with spring-cage clamp with fixing flanges 100% protected against mismating |
|||
Pitch: | 3.81mm/0.15in |
|||
IEC | UL | CSA | ||
Rated Voltage: | 250V | 300V | 300V | |
Rated Current: | 10A | 10A | 10A | |
Wire Range | 0.2-1.5mm2/24-14AWG |
|||
Available Poles: | 2-24 | |||
Strip length (mm/in): | 8-9mm/0.33 in |
|||
Wires: | Applied for any kind of wires |
|||
Connect Ways: | spring-clipping |
|||
Peak Voltage: | 2.5KV |
|||
Weight: | g |
|||
Pollution Severity: | 2 |
|||
UL94 Insulation Material: | V 0 or V 2 |
|||
Insulation Material: | PA66 |
|||
Color: | Light-Gray |
|||
Packing: | 100PCS |
