Product Details
| Brand Name | SUPU | Place of Origin | China | |
| Model Number | SP450 |
Product Description
Certification:ROHS, ISO9001, COC, CE, CB, TUV

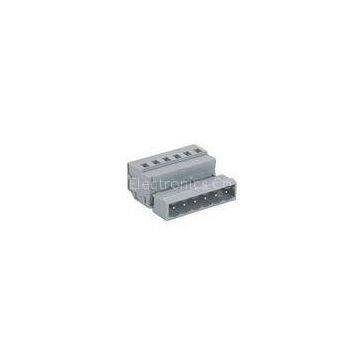

250V 12A 0.2 - 2.5 mm2?Spring Cage Clamp PCB?MCS Connector , PA66 Insulation Material Grey
Quick details
2-24 Male Connectors With Spring-cage Clamp.
250V 12A?300V?15A.
Pitch 5.0mm/0.197in
Wire Range 0.2-2.5mm2/24-14AWG.?
Order No.:450406(Grey)
◆?As PCB Connectors,
◆As feed-through plug connector,
◆?As plug connectors on rail-mounted terminal blocks,
◆?As plug-in connection for flying leads for different types of assembly,
◆?Applied in PCB, heat pump controller,the door control of a lightrail
|
Article: |
2-24 Male Connectors With Spring-cage Clamp |
|||
|
Pitch: |
5.0mm/0.197in |
|||
|
IEC |
UL |
CSA |
||
|
Rated Voltage: |
250V |
300V |
300V |
|
|
Rated Current: |
12A |
15A |
15A |
|
|
Wire Range |
0.2-2.5mm2/24-14AWG??? |
|||
|
Available Poles: |
2-24 |
|||
|
Strip length (mm/in): |
8-9mm/0.33 in |
|||
|
Wires: |
Applied for any kind of wires |
|||
|
Connect Ways: |
spring-clipping |
|||
|
Peak Voltage: |
4.0KV |
|||
|
Weight: |
g |
|||
|
Pollution Severity: |
3 |
|||
|
UL94 Insulation Material: |
V 0 or V 2 |
|||
|
Insulation Material: |
PA66 |
|||
|
Color: |
Gray |
|||
|
Packing: |
100PC |
|
Picture |
Name |
Order No. |
|
?Mounting Tool |
?450014 |
|
|
?Jumper |
