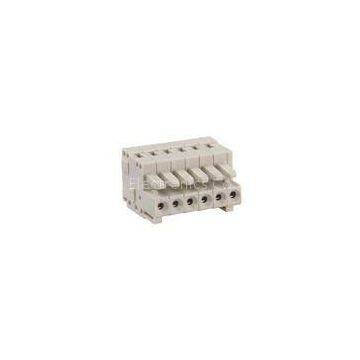

2P - 24P 250V 10A 24 - 16 AWG Female MCS Connector , Spring Cage Clamp
- T/T L/C D/P D/A
- 7 days
You May Like
-
Female 250V 16A 300V 15A 24 - 14AWG MCS Connector With Locking Device SP450
-
Angled Female 6P16A 15A MCS Connector With Finxing Flanges Light-Grey
-
250V 16A Angled Female MCS Connector With Snap-in Mounting Feet
-
PCB 12A 15A MCS Connector With Spring Cage Clamp PA66 Insulation Material
-
0.2 - 1.5mm2 24 - 16A WG Spring Cage , PA66 Insulation Material , SPQ 100pcs / box
-
2P Wago 24 -12 AWG 800V 41A Spring Terminal Block Spring-clipping SP206
Product Details
| Brand Name | SUPU | Place of Origin | China | |
| Model Number | SP435 |
Product Description
Certification:ROHS, ISO9001, COC, CE, CB, TUV
2P - 24P?250V?10A?24 - 16 AWG?Female?MCS Connector , ?Spring Cage Clamp?
Quick details?
2-24 Female Connectors With Spring-cage Clamp
250V?10A
Pitch?3.5mm/0.138in.
Wire Range?0.2-1.5mm2/24-16AWG.
2-24 Female Connectors With Spring-cage Clamp
Order No.:435106 (Light-Grey).
◆as PCB Connectors,
◆?as feed-through plug connector,
◆?as plug connectors on rail-mounted terminal blocks,
◆?as plug-in connection for flying leads for different types of assembly,
◆?Applied in PCBs, heat pump controller,the door control of a lightrail.
|
Article: |
2-24 Female Connectors With Spring-cage Clamp |
|||
|
Pitch: |
3.5mm/0.138in |
|||
|
IEC |
UL |
CSA |
||
|
Rated Voltage: |
250V |
300V |
300V |
|
|
Rated Current: |
10A |
10A |
10A |
|
|
Wire Range |
0.2-1.5mm2/24-14AWG??? |
|||
|
Available Poles: |
2-24 |
|||
|
Strip length (mm/in): |
8-9mm/0.33 in |
|||
|
Wires: |
Applied for any kind of wires |
|||
|
Connect Ways: |
spring-clipping |
|||
|
Peak Voltage: |
2.5KV |
|||
|
Weight: |
g |
|||
|
Pollution Severity: |
3 |
|||
|
UL94 Insulation Material: |
V 0 or V 2 |
|||
|
Insulation Material: |
PA66 |
|||
|
Color: |
Light-Gray |
|||
|
Packing: |
100P |
| Attachment | Name | Order NO. |
| ?22 | ?222 | ?22 |
