Home > Products > Spring Terminal Block > 0.2 - 1.5mm2 24 - 16A WG Spring Cage , PA66 Insulation Material , SPQ 100pcs / box
0.2 - 1.5mm2 24 - 16A WG Spring Cage , PA66 Insulation Material , SPQ 100pcs / box
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
2P Wago 24 -12 AWG 800V 41A Spring Terminal Block Spring-clipping SP206
-
800V 18A Cross - Section 0.2 - 1.5 mm2/24 - 16 AWG 2 Conductor Through Terminal Block
-
3 Conductor 800V 32A Ground Rail Spring Terminal Block Green Yellow
-
800V 32A 4 Conductor Ground Spring Terminal Block 0.2 - 4.0mm2 / 24 - 14 AWG
-
IEC 800V 18A, UL 600V 24 - 16 AWG 4 Conductor Through Spring Terminal Block Of Front - Entry
-
750V 32A 300V 20A Transformer Terminal Block Screw - Clipping SUP 4/1
Product Details
| Brand Name | SUPU | Place of Origin | China | |
| Model Number | 215951 |
Product Description
Certification:ROHS, ISO9001, CQC, CE,TUV

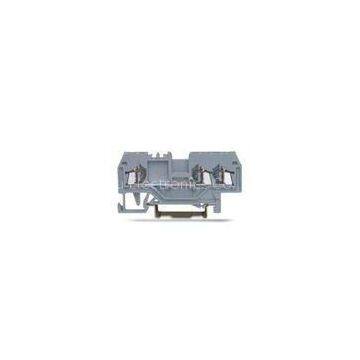

0.2 - 1.5mm2 24 - 16A WG Spring Cage Terminal Block , PA66 Insulation Material
Quick details
3-Conductor Through Terminal Block
Wire Range 0.2-1.5mm2/24-16AWG.
800V 18A 600V 10A
PA66 Insulation Material
?
Order No.:215951(Gray)
Other Color: 215952(Orange)/215953(Red)
?????????????????? 215954(Blue)/215955(Yellow) 215957(Ground terminal blocks)
◆?Use SUPU spring clipping technology, have the advantages of reliability, shock resistance, maintenance-free, etc.
◆?Operate easily, only need a screw driver.
◆?Print marker card as customer\'s requests.
◆?Mounted on SP35 standard rail (steel or aluminum).
Specifications:
|
Part Name: |
3-Conductor Through Terminal Block |
|||
|
Wire Range: |
0.2-1.5mm2/24-16AWG |
|||
|
IEC |
UL |
CSA |
EN |
|
|
Rated Voltage: |
800V |
600V |
600V |
800V |
|
Rated Current: |
18A |
10A |
10A |
18A |
|
Size (mm/in): |
4×62.5×27mm/0.157×2.46×1.06 in? |
|||
|
Strip length (mm/in): |
8-9 mm/0.33 in |
|||
|
Wires: |
Applied for any kind of wires |
|||
|
Connect Ways: |
spring-clipping |
|||
|
Entry Type: |
Front-entry |
|||
|
Peak Voltage: |
8KV |
|||
|
Weight: |
||||
|
Pollution Severity: |
3 |
|||
|
UL94 Insulation Material: |
V 0 or V 2 |
|||
|
Insulation Material: |
PA66 |
|||
|
Color: |
Gray/Orange/Red/Blue/Yellow |
|||
|
Packing: |
100PCS |
Attachment:
|
Name |
Order No. |
|
End Plate |
215151(Gray)/215152(Orange) |
|
Adjacent Jumper |
215301 |
|
Protective Warning Marker |
215701 |
