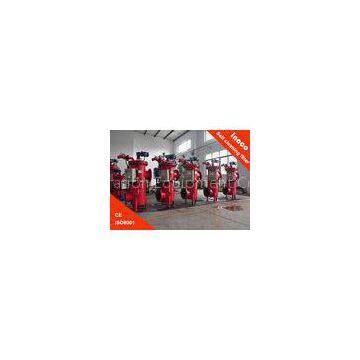

Hydraulic Automatic Self Cleaning Filters Carbon Steel High Performance OEM

FOB Price

Negotiable / Set

1 Set(Min. Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	YNT		Place of Origin	China
Model Number	InoAC-Bru

Delivery Time:15-45 Days After Confirmation
Certification:ISO9001, CE

Hydraulic Automatic Self Cleaning Filters Carbon Steel High Performance OEM

Quick Detail:

1, automatic operation.

2, state-of-the-art technology and brilliant manufacturing process.

3, Non-standard design is available .

4, CE, ISO9001certification

Description:

Automatic self-cleaning strainers are used to strain fresh, brackish, or salt intake water for plant services such

as cooling, process, and fire protection. The strainers allow water to be recycled within the plant, reducing costs.

? Process Industry: Protect heat exchangers, pumps, valves, and spray nozzles.

? Power Industry :Pump seal protection and cooling water.

? Pulp and Paper Industry :Remove and separate bark and chips for recycling and prevent clogging of nozzles.

? Sewage and Water Treatment Plants :Strain secondary effluent prior to discharge and provide clean plant service water.

? Primary Metal Industry: Provide clean water for quenching, descaling, and blast furnace cooling.

Specifications:

Model	S-150	S-200	S-250	S-300	S-350	S-400	S-450	S-500	S-600
Pipe diameter (mm)	150	200	250	300	350	400	450	500	600
Filter flow (m3/h)	150	300	450	600	900	1200	1500	2000	2800
Filtering area (cm2)	7500	7500	7500	14500	17500	21500	25000	25000	2600
Drain valve DN(mm)	50	50	50	50	80	80	80	80	80
One-time cleaning water consuming (L)	150	150	200	200	350	350	350	350	350
Motor power (KW)	0.55	0.55	0.55	0.75	0.75	0.75	0.75	0.75	0.75
Weight (Kg)	310	320	350	460	510	638	956	1056	1243
