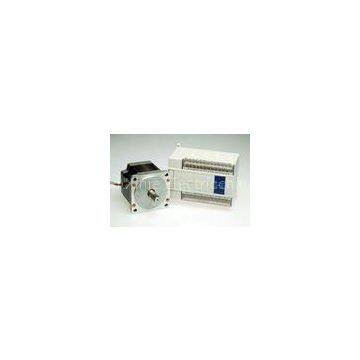

32 I/O Power Supply DC 24V Motion Control PLC 200KHz Pulse For Cutting Machine
- 0 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
32 I/O Five Axes Pulse Motion Control PLC Programming To Mitsubishi PLC
-
Delta Servo Motor Motion Control PLC CAD Control For Electronic Machines
-
8 PNP Motion Control PLC Extension I/O Module With Ethernet , Yaskawa Inverter Servo Motor
-
Interpolation Instruction Programmable Logic Controller PLC For Packaging Machine
-
NPN Input Transistor Output Motion Control PLC For Food Machine And Medical Machine
-
0 - 10V Motion Control PLC Programmable Logic Controller For CNC Machine , 0 - 20mA
Product Details
| Brand Name | XINJE | Place of Origin | China | |
| Model Number | XCC-32T-C |
Product Description
Certification:CE, ISO9001
32 I/O Power Supply DC 24V Motion Control PLC 200KHz Pulse For Cutting Machine
Quick Detail:
?
32 I/O(input/output),
power supply DC24V,
motion controller PLC (Programmable logic controller).
Powerful function:?5 axis high speed pulse output,?5 channels AB phase?high speed counter, 2-axis interpolation function for CNC machine and other machines.
?
?
Description:
?
High performance PLC, special for motion control
Fast float instruction
5-channel high speed counter, 5-channel AB phase high speed pulse output (2-axis line and arc interpolation function)
Support CAD motion control, support CANbus
Digital input, transistor output, DC24V power supply
?
?
Specifications:
?
|
Item |
????????????????? Specification |
|
|
32-points |
||
|
Scanning mode |
Cyclic scan, timing scan |
|
|
Programming mode |
Instruction, ladder chart |
|
|
Operation speed |
0.5μs |
|
|
Latched |
Flash ROM and Li battery |
|
|
Program capacity |
256KB with secret download mode |
|
|
I/O points |
18 digital inputs/14 digital outputs |
|
|
Internal coil(M) |
8768 points |
|
|
Process(S) |
1024 points |
|
|
Timer(T) |
Points |
640 points |
|
Specification |
100ms timer:0.1~3276.7s 10ms timer timer:0.01~327.67s 1ms timer:0.001~32.767s Interruption timer |
|
|
Counter(C) |
Points |
640 points |
|
specification |
16-bit counter:K0~32,767 32-bit counter:K0~2,147,483,647 |
|
|
Data register(D) |
8000?words |
|
|
FlashROM register(FD) |
1024 words |
|
|
Extension register(ED) |
36864 words |
|
|
High speed functions |
High speed count, pulse output, external interruption |
|
|
Timing scan period |
0~99ms |
|
|
Password protection |
6-bit ASCII |
|
|
Self-diagnosis |
Power-on checking, monitoring timer, grammar checking |
?
?
?Applications:?
?
32 I/O(input/output) motion controller PLC (Programmable logic controller) can be used to packing machine, CNC machine, bending machine and so on.
????????
