Product Details
| Brand Name | XINJE | Place of Origin | China | |
| Model Number | XP2-18R-C |
Product Description
Certification:CE, ISO9001

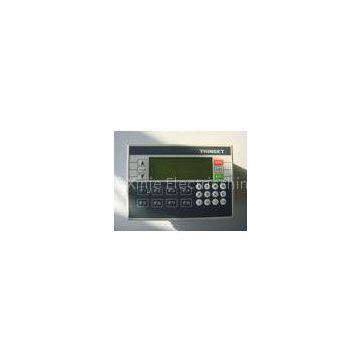

Touch Screen Integrated PLC And HMI With Siemens Logo And Frequency Inverter
Quick Detail:
18 I/O(input/output),
power supply DC24V,
XP series controller integrated PLC and touch screen HMI in one unit
3.7 inch LCD touch screen
Relay output PLC terminals
26 function buttons on the panel, touch screen LCD
Description:
1. XP series integrated PLC and HMI in one unit
2. 3.7 inch blue LCD
3. PLC digital input:10 points, optical couple isolated
4. PLC digital output: 8 points (relay output)
5. LCD display: 192×64 pixel
6. use life up to 20000 hours
7. HMI functional keys up to 26
8. Use the same cable to download program for HMI and PLC
9. Compact configure, save more space?
10. PLC has 3 channels interruption output
Specifications:
|
|
DC12V-DC24V |
|
Current Consumption |
Less than 10W (TYP2.0W) |
|
Allowable Momentary Power-cut |
Less than 20ms |
|
Voltage Endurance |
AC1000V-10mA 1 minute (signal and ground) |
|
Insulated Resistance |
DC500V-about 10MΩ (signal and ground) |
|
Operation Temperature |
0~50℃ |
|
Storage Temperature |
–10~60℃ |
|
Ambient Humidity |
20~85% (Non-condensing, dry bulb) |
|
Vibration Resistance |
10~25Hz (X,Y,Z directions for 30 minutes 2G) |
|
Interference Rejection |
Noise voltage: 1000Vp-p |
|
Atmosphere |
Free of corrosive gas |
|
Protect Configuration |
IP65F |
?Applications:?
XP series integrated PLC and HMI has the function of PLC and HMI. PLC function include high speed pulse output, AB phase count, interruption and so on. HMI has function keys and touch screen to control the PLC and other device. This model save space and easy to use.
