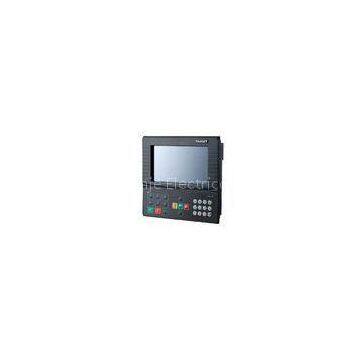

7'' LCD Touch Screen PLC HMI Panels RS232 Serial Port With Frequency Inverter
Negotiable
/ Set
1 Set(Min.Order)
- 0 Set / Sets per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Integrated Delta PLC HMI Human Machine Interface With Two Communication Ports
-
Modbus Industrial HMI touch screen USB Port For CSV File , IP65 4.3 Inch
-
Siemens / Mitsubishi Industrial HMI Human Machine Interface 8MB ROM 3D Picture Display
-
IP65 Siemens Industrial HMI PLC High Resolution ARM9 Processor Intelegent Home Use
-
RS232 / RS485 LCD Industrial HMI Two USB Port For Flash Disk To Import Excel Data
-
RS422 Industrial HMI Touch Screen Panel 250mA Long Life 50000 Hours DC 20 - DC 28V
Product Details
| Brand Name | XINJE | Place of Origin | China | |
| Model Number | MP760-T |
Product Description
Certification:CE, ISO9001
7\'\' LCD Touch Screen PLC HMI Panels RS232 Serial Port With Frequency Inverter
Quick Detail:
power supply DC24V,
MP series?PLC HMI (human machine interface),
7 inch LCD
26 function buttons,
can communicate with most brand of PLC models,
Touch screen LCD,
Two communication ports
RS485 terminal support Modbus communication
Description:
Rich functions, touch screen PLC HMI LCD display: 7 inch, 480*234 pixels, LCD life can up to 500000 hours 26 function buttons Two communication ports, strong communication functions Protection level IP20 Replaceable panel and cover Knock-down terminals 7 inch 256 colors TFT LCDSpecifications:
General Specifications
|
Input voltage
|
DC24V
|
|
Power
|
< 10W (TYP2.0W)
|
|
Momentary power off permit
|
< 20ms
|
|
Withstand voltage
|
AC1000V-10mA 1 minute
|
|
Insulated impedance
|
DC500V- about 10MΩ
|
|
Operate temperature
|
0~50℃
|
|
Storage temperature
|
–10~60℃
|
|
Ambient temperature
|
20~85%
|
|
Withstand oscillation
|
10~25Hz
|
|
Anti-jamming
|
Voltage noise:1000Vp-p
|
|
Ambient air
|
No corrosive gas
|
|
Protection level
|
IP20
|
Function Specifications
|
Screen
|
LCD
|
TFT 256 true colors
|
|
Screen size
|
7 inch
|
|
|
Use life
|
>50000 hour, 24 hours running based on ambient temperature 25℃
|
|
|
Display area
|
480*234
|
|
|
Contrast
|
Non-adjustable
|
|
|
Character
|
Chinese, English, Japanese, Korean, etc.
|
|
|
Font
|
Any font and size
|
|
|
Touch panel
|
Digital touch mode
|
|
|
Memory
|
screen
|
4MB FlashROM
|
|
Data
|
4KB SRAM
|
|
|
Interface
|
Communication port
|
Support RS-232/RS-485/RS-422
|
|
Download port
|
RS-232
|
Applications:?
MP series HMI can communicate with most brand of PLC, such as Siemens, Mitsubishi, ABB, Omron, AB and so on. It also can communicate with frequency inverter and other devices.
