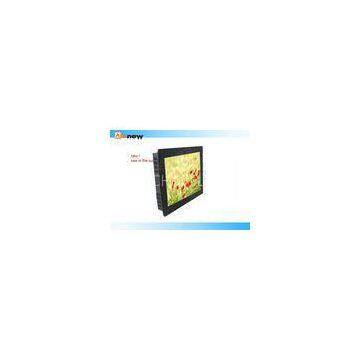

Rack Mount 12.1" Sunlight Readable LCD Display 800X600 Industrial 1000nits Monitors

Model: AXD-12OPIPN1P1-VH

Screen Size:12’’????????

Screen format: 4:3

Display Resolution(pixel):800X600

Contrast Ratio:700:1

Brightness:1000cd/m^2

Storage temperature : -30℃~85℃

Input signal: VGA DVI

Power Input: AC100~240 V/DC 12V

Product status: Stock

Features and Advantages

1.New and Industrial A grade perfect panels with stable supply

2. industrial control board supports the displays working 24 hours

3. Professional and industrial hardware and parts to guarantee its working normally in rough environment, Aluminum Front Bezel with rugged housing

4. Industrial design to protect the LCD screen, mounting on the outdoor application

5. VGA DVI interfaces ?

Display Specifications

Display

12.1\" Color TFT Industrial High Brightness?Monitor

Model Name

AXD-12OPIPN1P1-VH

Active Display Area (mm)

246?(H)x184.5(V)

Pixel Pitch (mm)

0.3075(H)x0.3075(V)

Resolution (Pixel)

SVGA (800X600) 262K/16.2M Color

Brightness (CD/m^2)

1000cd/m^2?

Contrast Ratio

700:1

Viewing Angle (CR >=10)

160/140

Power consumption

25W typical, normal operation

Touch Screen

Resistive ;IR Touch ;RS232/USB(Optional)

OSD Control

On the back side

I/O Connectors

1x12v,1XVGA,DVI-D(Optional)

Power Input

DC 12V,4A 48W

Mechanical Specifications

Construction

Aluminum front bezel &Black Color

Dimensions

351.0 x 265.0x 56.0(mm)

Mounting

Embedded ,Wall Mounting Optional

Power source

AC 100~240V/ 12V DC

Environment Specifications

Operating Temperature

-30~80℃

Storage Temperature

-30~85℃

Rating

Facilitate installation of the demolition,solid portfolio

Ordering Information

12.1” IP High Brightness?Monitor with VGA input and power adapter

Packing details

1x 12.1 inch Sunlight Readable LCD?display;

Packed in 5 pieces/carton with protection foam ?

Optional accessories: 1xVGA, 1x Power supply cable, 1x power adapter

Delivery terms

7- working days for stock products after receiving payments;? 15 working days for order production
