Product Details
| Brand Name | AXNEW | Place of Origin | China | |
| Model Number | AXD-19OPT4P1-VH (VGA/DVI) |
Product Description
Certification:CE/FCC/ROHS/CCC
?

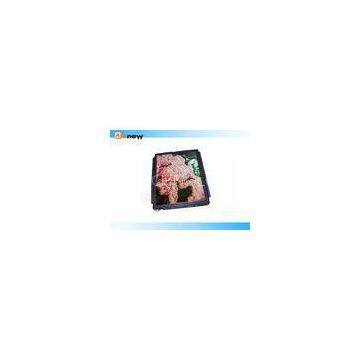

19 inch 4:3 1280X1024 Pixels Sunlight Readable LCD Display Waterproof USB IR Touch Screen
?
?
?
1000nits 19 ?inch sunlight readable industrial LCD open frame monitor with VGA DVI input slim and thin design for 19’’ LCD. IR Touch with anti-vandal to protect the LCD . used for Outdoor Automatic equipments, Outdoor Advertising , Outdoor vending embedded system,Outdoor Kiosks application etc.
?
Quick Details:
?
Model: AXD-19OPT4P1-VH
Screen Size:19’’????????
Screen format: 4:3
Display Resolution(pixel):1280x1024
Contrast Ratio:800:1
Brightness:1000cd/m^2
Storage temperature : -10℃~70℃
Input signal: VGA DVI
Power Input:?AC100~240 V /DC 12V
Product status: Stock
?
?
Features and Advantages
?
1. New and Industrial A grade perfect panels with stable supply
2. Slim and simple open frame to mount all the LCD kits in one , which is easily installed
3. industrial control board supports the displays working 24 hours
4. Professional and industrial hardware and parts to guarantee its working normally in rough environment
5. VGA DVI interfaces ;IR Touch screen with anti-vandal to protect the LCD
6. 19 inch high brightness open frame touch monitor for application control , advertising player ,campus and industrial terminals etc
|
Display Specifications |
|
|
Display |
19\" Color TFT Infrared touch?Monitor |
|
Model Name |
AXD-19OPT4P1-VH |
|
Active Display Area (mm) |
376.3?(H)x301.1(V) |
|
Pixel Pitch (mm) |
0.294(H)x0.294(V) |
|
Resolution (Pixel) |
SXGA (1280X1024) 16.2 M (6 bit + FRC) |
|
Brightness (CD/m^2) |
1000cd/m^2 |
|
Contrast Ratio |
800:1 |
|
Viewing Angle (CR >=10) |
160/150 |
|
Power consumption |
28.5W typical, normal operation |
|
Touch Screen |
?IR Infrared touch panel anti-vandal |
|
OSD Control |
On the back side |
|
I/O Connectors |
1x12v,1XVGA,DVI-D(Optional) |
|
Power Input |
DC 12V,4A 48W |
|
Mechanical Specifications |
|
|
Construction |
Steel chassis & Black Color |
|
Dimensions |
432.0 x 339.0x49.8 (mm) |
|
Mounting |
Edge locking ,fixing holes embedded |
|
Power source |
AC 100~240V/ 12V DC-4A |
|
Environment Specifications |
|
|
Operating Temperature |
-10~750℃ |
|
Storage Temperature |
-20~85℃ |
|
Rating |
Facilitate installation of the demolition, solid portfolio |
|
Ordering Information |
19” IR touch Monitor 600nits with VGA input and power adapter |
Packaging & Delivery
|
Packing details |
1x 19 inch Sunlight Readable?LCD?display; Packed in 3 pieces/carton with protection foam Optional accessories: 1xVGA, 1x Power supply cable, 1x power adapter |
|
Delivery terms |
7- working days for stock products after receiving payments;? 15 working days for order production |
