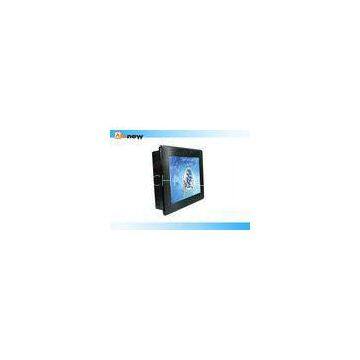

HDMI / VGA 22 Inch 12V Industrial LCD Monitor 1680X1050 With IP65 Front Bezel

Model:AXD-22IPN1P1

Screen Size:22’’????????

Screen format: 16:10

Display Resolution(pixel):1680X1050

Contrast Ratio:1000:1

Brightness:250cd/m^2

Storage temperature :0℃~60℃

Input signal: VGA HDMI AUDIO SPEAKER

Power Input: AC100~240 V/DC 12V

Touch Type:?Resistive,IR touch options?

Product status: Stock

Display Specifications

Display

22.5\" Color TFT Industrial Monitor

Model Name

AXD-22IPN1P1

Active Display Area (mm)

473.37(H)x296.1(V)

Pixel Pitch (mm)

0.282(H)x0.282(V)

Resolution (Pixel)

WSXGA (1680X1050)?262,144(6 bit + FRC)

Brightness (CD/m^2)

250cd/m^2

Contrast Ratio

1000:1

Viewing Angle (CR >=10)

170/160

Power consumption

28.5 W typical, normal operation

Touch Screen

Resistive,capacitive ;IR Touch ;RS232/USB(Optional)

OSD Control

On the back side

I/O Connectors

1x12v,1XVGA,DVI-D(Optional)

Power Input

DC 12V,4A 48W

Mechanical Specifications

Construction

Aluminum front bezel &Black Color

Dimensions

559.6x 382.0x 80.7(mm)

Mounting

Embedded ,vesa 75x75(100x100) Wall Mounting Optional

Power source

AC 100~240V/ 12V DC

Environment Specifications

Operating Temperature

0~60℃

Storage Temperature

0~60℃

Rating

Facilitate installation of the demolition,solid portfolio

Ordering Information

22” IP Monitor with VGA input and power adapter

Packing details

1x 22 inch Industrial?LCD?display;

Packed in 3 pieces/carton with protection foam

Optional accessories: 1xVGA, 1x Power supply cable, 1x power?adapter

Delivery terms

7- working days for stock products after receiving payments;? 15 working days for order production
