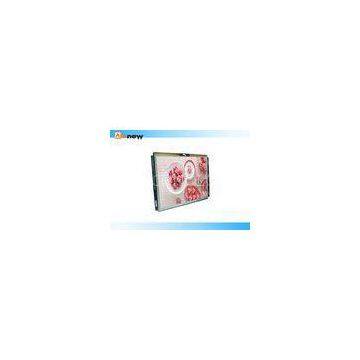

15" Thin Vertical Digital Open Frame LCD Display 1024x768 3M Capacitive Touch Screen
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
12V Slim HD 15\" Industrial Touchscreen LCD Monitor For Medical Equipment
-
Wall Mount 17\" TFT XGA Capacitive Industrial Touch Screen Monitor 300cd/m^2
-
17 inch 4:3 Capacitive Open Frame Touch Screen Monitor For Interactive Devices
-
19 Inch 1280x1024 SXGA Capacitive Touch Screen LCD Display Rack Mount LCD monitor
-
Thin 300 nits Industrial Touch Screen Monitor , Projected Capacitive Touch 19 Inch TFT Monitor
-
1280x1024 SXGA 19 Inch Capacitive Open Frame LCD Display Rear Mount
Product Details
| Brand Name | AXNEW | Place of Origin | China | |
| Model Number | AXD-15OPEXT2-Cap(VGA/DVI) |
Product Description
Certification:CE/FCC/ROHS/UL/CCC
15\" Thin Vertical Digital Open Frame LCD Display 1024x768 3M Capacitive Touch Screen
15’’ capacitive touch screen LCD open frame monitor with VGA DVI input. 3M brand touch with high and exact control is for high requested working environment.
3M capacitive touch is a popular touch technology for Medical industry , Automatic equipments, Advertising , vending embedded system, ATM application etc.
Quick Details:
Model: AXD-15OPEXT2-Cap
Screen Size:15’’????????
Screen format: 4:3
Display Resolution(pixel):1024x768?
Contrast Ratio:600:1
Brightness:350cd/m^2
Storage temperature : -20℃~70℃
Input signal: VGA DVI
Power Input: AC 100~240V/ 12V DC
Touch Type: capacitive touch
Product status: Stock
Features and Advantages
1. New and Industrial A grade perfect panels with stable supply
2. Slim and simple open frame to mount all the LCD kits in one , which is easily installed
3. industrial control board supports the displays working 24 hours
4. Professional and industrial hardware and parts to guarantee its working normally in rough environment
5. VGA DVI interfaces ; touch screen options
6. 15 inch open frame capacitive touch is new and popular touch technology for Medical industry , Automatic equipments etc
|
Display Specifications |
|
|
Display |
15\" Color TFT? Capacitive?touch?Monitor |
|
Model Name |
AXD-15OPEXT2-Cap |
|
Active Display Area (mm) |
305.7(H)x229.7(V)? |
|
Pixel Pitch (mm) |
0.297(H)x0.297(V) |
|
Resolution (Pixel) |
VGA (1024x768)6 bit + FRC |
|
Brightness (CD/m^2) |
350nits |
|
Contrast Ratio |
700:1 |
|
Viewing Angle (CR >=10) |
160/140 |
|
Power consumption |
12.6?W typical, normal operation |
|
Touch Screen |
Capacitive touch panel( USB Controller) |
|
OSD Control |
On the back side |
|
I/O Connectors |
1x12v,1XVGA,DVI-D(Optional) |
|
Power Input |
DC 12V,4A 48W |
|
Mechanical Specifications |
|
|
Construction |
Steel housing?& black ?Color, anti-vandal |
|
Dimensions |
359.0x 270.0x46.3(mm) |
|
Mounting |
Embedded ,up and down; left-right fixing holes, vesa75x75;100x100 Wall Mounting Optional |
|
Power source |
AC 100~240V/ 12V DC |
|
Environment Specifications |
|
|
Operating Temperature |
0~50℃ |
|
Storage Temperature |
-20~60℃ |
|
Rating |
Facilitate installation of the demolition,solid portfolio |
|
Ordering Information |
15”?LCD with 3M capacitive?touch with?VGA Input and power adapter |
Packaging & Delivery
|
Packing details |
1x ?15 inch Open Frame?LCD?Display; Packed in 5?pieces/carton with protection foam Optional accessories: 1xVGA, 1x Power supply cable, 1x power ?adapter |
|
Delivery terms |
7- working days for stock products after receiving payments;? 15 working days for order production |
