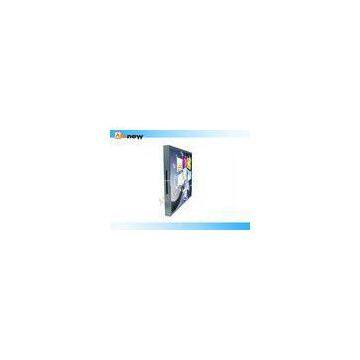

Large 19" 12V DC Open Frame Digital Signage LCD Display 1280x1024 300cd/m^2

FOB Price

Negotiable / Kilogram

1 Kilogram(Min.Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	AXNEW		Place of Origin	China
Model Number	AXD-19OPN1P2-T5 (VGA/DVI)

Product Description

Delivery Time:10-15 working days
Certification:CE/ROHS

?
Industrial LCD Touch Screen Monitor Touch Screen 1280x1024 pixel For Medical
?
?
Touch screen 19 inch LCD open frame VGA DVI input slim and thin design for 19’’ LCD; 19’’ 4:3 format LCD is widely used for Medical industry , Automatic equipments, Advertising , vending embedded system, Kiosks etc. You can install the touch screen by side.
?
Quick Details:
?
Model: AXD-19OPN1P2-T5?
Screen Size:19’’????????
Screen format: 4:3
Display Resolution(pixel):1280x1024
Contrast Ratio:1000:1
Brightness:300cd/m^2
Storage temperature : -10℃~70℃
Input signal: VGA DVI
Power Input: AC100~240 V/DC 12V
Touch Type: Resistive touch
Product status: Stock
?
Features and Advantages
?
1. New and Industrial A grade perfect panels with stable supply
2. Slim and simple open frame to mount all the LCD kits in one , which is easily installed
3. industrial control board supports the displays working 24 hours
4. Professional and industrial hardware and parts to guarantee its working normally in rough environment
5. VGA DVI interfaces; USB touch controller
6. 19 inch touch open frame monitor for application control , advertising player ,campus and industrial terminals etc

Display Specifications
Display	19\" Color TFT Open Frame Touch LCD Monitor
Model Name	AXD-19OPN1P2-T5
Active Display Area (mm)	376.3?(H)x301.1(V)
Pixel Pitch (mm)	0.294(H)x0.294(V)
Resolution (Pixel)	SXGA (1280X1024) 16.7M
Brightness (CD/m^2)	?300cd/m^2
Contrast Ratio	1000:1
Viewing Angle (CR >=10)	160/160
Power consumption	28.5W typical, normal operation
Touch Screen	Resistive USB/ RS232
OSD Control	On the back side
I/O Connectors	1x12v,1XVGA,DVI-D(Optional)
Power Input	DC 12V,4A 48W
Mechanical Specifications
Construction	Steel metal slim??frame
Dimensions	398.5 x 326.5x 34.0 (mm)
Mounting	fixing?braket ;Embedded optional
Power source	AC 100~240V/ 12V 4A AC/DC adapter
Environment Specifications
Operating Temperature	0~60℃
Storage Temperature	-10~70℃
Rating	Facilitate installation of the demolition, solid portfolio
Ordering Information	19” ?OP touch lcd Monitor with VGA input and power adapter

?
Packaging & Delivery

Packing details	1x 19 inch Industrial Touch Screen Monitor; Packed in 10 pieces/carton with protection foam Optional accessories: 1xVGA, 1x Power supply cable, 1x power adapter
Delivery terms	7- working days for stock products after receiving payments;? 15 working days for order production
