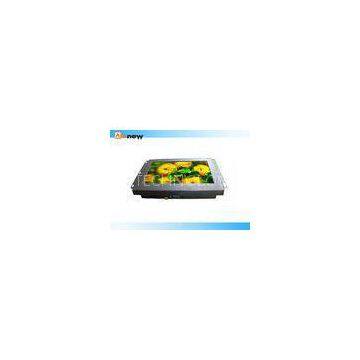

7 Inch Kiosks Touch Screen LCD Displays Resistive Panel For Vending Machine

Model:AXD-07OPN1P2-T1

Screen Size:7\'\'?????????

Screen format: 16:9 wide

Display Resolution(pixel):800x480 ??

Contrast Ratio:500:1

Brightness: 250cd/m^2

Storage temperature : -20℃~80℃

Input signal: VGA/HDMI/AV

Power Input: AC100~240 V/DC 12V

Product status: Stock

Touch type: Resistive touch panel

Features and Advantages

1.New and A grade perfect panels with stable supply

2. industrial control board supports the displays working 24 hours

3. Professional and industrial hardware and parts to guarantee its working normally in rough environment

4. open frame with front panel frame design on the surface, rugged mounted frame to protect the LCD screen

5. VGA HDMI AV interfaces ;USB touch interface options

6. 7inch open frame monitor for gaming, kiosks, application control , advertising player ,campus and industrial terminals etc

LCD monitor information

Model Number

AXD-07OPN1P1-T2 (HDMI)

7’’ Touch LCD Monitor

Type

7 “ TFT Active Matrix LCD with LED Backlight

Active Display Area(mm)

154.08 (H) x 85.92 (V)

Pixel Pitch(mm)

0.0642 (H) x 0.1790 (V)

Resolution

800 x 480, up to 1024X768

Contrast Ratio

500:1 (typ.)

Display Color

16.7 M colors

Brightness

250(Typ)

Viewing Angles

140(H);120(V)

Response Time

10ms/15ms

Environmental Temperature

Operating Temperature

-10℃～70℃

Storage Temperature

-20℃～80℃

Signal Input

PC

RGB analog(VGA), HDMI, AV

RGB Frequency

H:31.5~38kHz, V:50~60Hz

Power Specification

Voltage Consumption

AC 100~240V,Universal,±10% ; AC/DC 12V4A

3.3W typical, normal operation

Touch Screen Optional

Resistive Touch

Resistive touch panel

4 wire resistive touch glass

Touch interface

USB

Transmittance

>=85%

Input voltage

less than 10V

working temperature

-10℃～65℃

touch kits

>=1,000,000 times in one position

Dimensions

Holes fixi
