Home > Products > Sunlight Readable LCD Display > High Brightness Flat 10.4'' TFT IR Sunlight Readable Lcd Monitor With VGA DVI Input

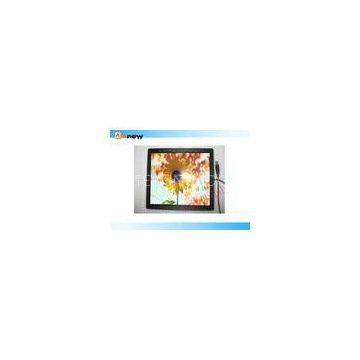

High Brightness Flat 10.4'' TFT IR Sunlight Readable Lcd Monitor With VGA DVI Input
- T/T L/C D/P D/A
- 7 days
You May Like
-
Wide Screen 1000nits 18.5 Inch High Brightness LCD Display Open frame For Outdoor Gas station
-
26 Inch HD AC100V - 240V Sunlight Readable LCD Display High Contrast IP Front Bezel Design
-
Thin 20\'\' VGA DVI Stock High Brightness Lcd Monitor For Outdoors Advertising
-
27\" 1920X1080 Led backlight TFT Sunlight Readable LCD Display For Outdoor Advertising
-
24\" Full HD Sunlight Readable LCD Display , VGA HDMI DVI Color TFT Monitors
-
19\" 1280x1024 Sunlight Readable LCD Monitor Color TFT Infrared Touch Screen
Product Details
| Brand Name | AXNEW | Place of Origin | China | |
| Model Number | AXD-10OPN1P3-TH4(VGA;DVI) |
Product Description
Certification:CE/FCC/ROHS/CCC
Flat 10.4\'\' IR Touch Screen? Sunlight?Readable?LCD?Monitor Open Frame Design
Sunlight readable 1000nits 10.4 ?inch industrial LCD ; Resistive or IR touch options , industrial controller board with VGA DVI input , used for Outdoor Automatic equipments, Outdoor Gaming, outdoor Advertising , vending embedded system etc.
Quick Details:
Model:AXD-10OPN1P3-TH4
Screen Size:10.4’’????????
Screen format: 4:3
Display Resolution(pixel):800x600?
Contrast Ratio:500:1
Brightness:1000cd/m^2
Storage temperature : -30℃~80℃
Input signal: VGA DVI
Features and Advantages
1. New and Industrial A grade perfect panels with stable supply
2. industrial control board supports the displays working 24 hours
3. Professional and industrial hardware and parts to guarantee its working normally in rough environment
4. Open frame design to protect the LCD screen
5. VGA DVI interfaces ;infrared touch with USB interface options
6. sunlight readable? 10.4 inch open frame touch LCD for application control , advertising player ,campus and industrial terminals etc
|
Display Specifications |
|
|
Display |
10.4\" Color TFT?sunlight readable?Monitor |
|
Model Name |
AXD-10OPN1P3-TH4 |
|
Active Display Area (mm) |
211.2(H)x158.4(V) |
|
Pixel Pitch (mm) |
0.264(H)x0.264(V) |
|
Resolution (Pixel) |
VGA (800X600) 16.2M /6 bit + FRC |
|
Brightness (CD/m^2) |
1000cd/m^2 |
|
Contrast Ratio |
500:1 |
|
Viewing Angle (CR >=10) |
150/140 |
|
Power consumption |
12.8 W typical, normal operation |
|
Touch Screen |
Infrared touch( anti-vandal, IP65) |
|
OSD Control |
On the back side |
|
I/O Connectors |
1x12v,1XVGA,DVI-D |
|
Power Input |
DC 12V,4A 48W |
|
Mechanical Specifications |
|
|
Construction |
Steel?open frame?& black Color |
|
Dimensions |
Subject to the updated drawings |
|
Mounting |
Edge fixing holes,Vesa Mounting |
|
Power source |
AC 100~240V/ 12V DC |
|
Environment Specifications |
|
|
Operating Temperature |
-20~70℃ |
|
Storage Temperature |
-30~80℃ |
|
Rating |
Facilitate installation of the demolition,solid portfolio |
|
Ordering Information |
10.4” high brightness?open frame?Monitor and power adapter for outdoors application |
Packaging & Delivery
|
Packing details |
1x 10.4 inch Sunlight Readable?LCD?display; Packed in 5 pieces/carton with protection foam Optional accessories: 1xVGA, 1x Power supply cable, 1x power adapter |
|
Delivery terms |
7- working days for stock products after receiving payments;? 15 working days for order production |
