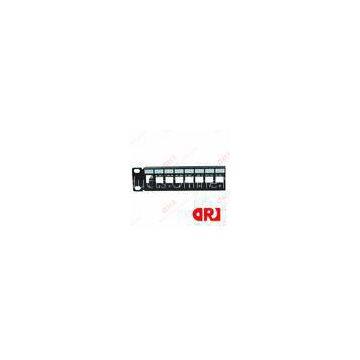

1U Rj45 cat6/cat5e patch panel 24 port , Rack Mount metal empty patch panels

1U Rj45 cat6/cat5e patch panel 24 port , Rack Mount metal empty patch panels

Quick Detail:

1.???? Type: FTP

2.???? Port:24

3.???? color: Black

4.???? Standard: ISO9001,RoHS,CE,UL,ETL Approval

5.???? Test pass: Fluck 4300 1800

6. ? ??Application: cat5e/cat6

7.???? IDC: 110 ,Krone , Dual

Specifications:

Meet TIA/EIA-568-A and TIA/EIA-568-B Category 5E requirements.?

Meet TIA/EIA TSB-40

Meet ISO/IEC Generic Cabling Standard 11801

Meet CENELEC Generic Cabling Standard EN50173

Electrical:

Angle:90,180 Degree?

Termination: 110 Type?

Current rating: 1.5 Amp Max.?

Voltage rating: 150 Volts?

Contact resistance: 20 m-ohm?

Insulation Resistance: 500M-ohm?

Dielectric Withstand Voltage: 1000 V AC RMS, 60Hz 1min

?
Materials:?

Housing: PC UL94V-0?

IDC: PC UL94V-0, Accept 22-26 AWG Solid Wire.?

PCB: FR4 1.6mm(0.04\") thickness, 2 layers?

Contact: PC UL94V-0, 0.45mm(0.018\") Diameter Phosphor bronze with 3 u\" Gold plating on contact area.?

Applications:

Patch management subsystem is the most important component is to achieve vertical lines and two horizontal cabling subsystem cross-connect hub.

for Structure Cabling System

Competitive Advantage:

As a?factory,We supply goods: with stable quality ?good prices? shorter delivery time ??less minimum order quantity.

We are running?in?networking?business for nearly?7 years,so our product of cabling are very rich,most? of?cabling accessories are available?with us.

All our goods are sell abroad, and we ?support our?customers with good service?? of?rich experience,which will save?much time&work.?

?.
