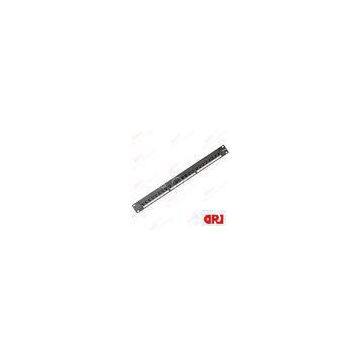

UTP 24 Ports Network Cabinet Cat5e Patch Panel with Bracket

UTP 24 Ports Network Cabinet Cat5e Patch Panel with Bracket

Quick Detail:

1.Type:Cat5e,UTP,24 ports?

2.Color:black??????????????????????????????????????

3.IDC build -in times ≥250,RJ45 socket plug-pull times ≥750

4.Contact Material:PC-UL90V-0

5.Quality control:100% tested by machine

6.wire:AWG 24-26

7.Export market:Global

Description:

1.?UTP?19\"?Rack?1U?24Port?Cat6APatch?Panel?with?shutter?Door?and?Label?Mark

2.?Available?in?1U&24Port?and?2U&48Port?configurations.

3.?Exceeds?all?TIA/EIA568B.210?Cat6A?and?ISO/IEC?11801?Class?EA?component?standard?requirements?atswept?frequencies?up?to?500MHZ

4.?Certified?performance?channel?up?to?100meters?and?exceeds?requirements?of?TIA/EIA?568B.2 10?and?ISO/IEC?11801?class?EA

5.?Back?Bar?is?optional 6.?IDC?Block:?K:LSA?Block,?D:Dual?Block,?H:110?Block

Specifications:

Meet TIA/EIA-568-A and TIA/EIA-568-B Category 5E requirements.

Meet TIA/EIA TSB-40
Meet ISO/IEC Generic Cabling Standard 11801
Meet CENELEC Generic Cabling Standard EN50173

Materials:

Housing: PC UL94V-0
IDC: PC UL94V-0, Accept 22-26 AWG Solid Wire.
PCB: FR4 1.6mm(0.04\") thickness, 2 layers
Contact: PC UL94V-0, 0.45mm(0.018\") Diameter Phosphor bronze with 3 u\" Gold plating on contact area.

Applications:

Patch management subsystem is the most important component is to achieve vertical lines and two horizontal cabling subsystem cross-connect hub.?

for Structure Cabling System

Competitive Advantage:

As a?factory,We supply goods: with stable quality ?good prices? shorter delivery time ??less minimum order quantity.

We are running?in?networking?business for nearly?10years,so our product of cabling are very rich,most? of?cabling accessories are available?with us.

All our goods are sell abroad, and we ?support our?customers with good service?? of?rich experience,which will save?much time&work.?
