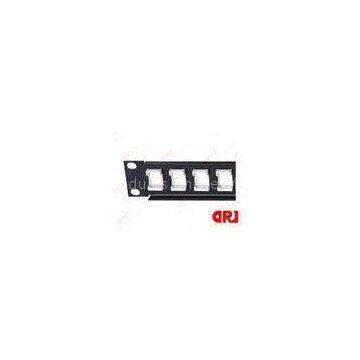

Black empty 16 / 32 port Rj45 Rack Mount Patch Panel 1U for cat5e / cat6

?
Black empty 16 / 32 port Rj45 Rack Mount Patch Panel 1U for cat5e / cat6
?
?
Quick Detail:
?
1.???? Type: UTP
2.???? Port:16
3.???? color: Black
4. ? ??Application: cat5e/cat6
5.???? Test pass: Fluck 4300 1800
6.???? IDC: 110 ,Krone , Dual
7.???? Standard: ISO9001,RoHS,CE,UL,ETL Approval
8. ? ? IDC contact pin:Gold-plating
?
Description:
1. The structure of each port of this patch panel is same which makes sure that the performance of each port is consistent.
?
2. Cable manager is combined to patch panel. All kinds of cables with different dimensions can be fixed on the patch panel.
?
3. T568A punching sequence and T568 B punching sequence are both compatible. Fitting for horizontal distribution in the equipments room and equipments connecting.


?
Electrical:
?
Angle:90,180 Degree
Termination: 110 Type
Current rating: 1.5 Amp Max.
Voltage rating: 150 Volts
Contact resistance: 20 m-ohm
Insulation Resistance: 500M-ohm
Dielectric Withstand Voltage: 1000 V AC RMS, 60Hz 1min
?
?
Specifications:
?
Meet TIA/EIA-568-A and TIA/EIA-568-B Category?6A requirements.

Meet TIA/EIA TSB-40
Meet ISO/IEC Generic Cabling Standard 11801
Meet CENELEC Generic Cabling Standard EN50173

?
?
Applications:

?
1.?UTP?19\"?Rack?1U?24Port?Cat6APatch?Panel?with?shutter?Door?and?Label?Mark
2.?Available?in?1U&24Port?and?2U&48Port?configurations.
3.?Exceeds?all?TIA/EIA568B.210?Cat6A?and?ISO/IEC?11801?Class?EA?component?standard?requirements?at?
swept?frequencies?up?to?500MHZ
4.?Certified?performance?channel?up?to?100meters?and?exceeds?requirements?of?TIA/EIA?568B.2 10?and?ISO/IEC?11801?class?EA
5.?Back?Bar?is?optional
6.?IDC?Block:?K:LSA?Block,?D:Dual?Block,?H:110?Block
?
Competitive Advantage:
?
As a?factory,We supply goods: with stable quality ?good prices? shorter delivery time ??less minimum order quantity.
We are running?in?networking?business for nearly?7 years,so our product of cabling are very rich,most? of?cabling accessories are available?with us.
All our goods are sell abroad, and we ?support our?customers with good service?? of?rich experience,which will save?much time&work.?

?





?.
