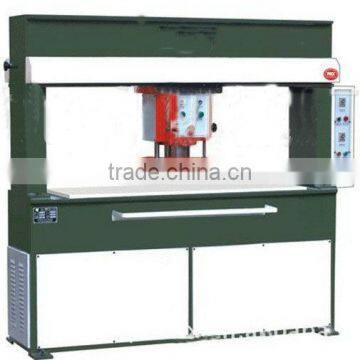

shoe cutting machine/25T Hydraulic Traveling Head Cutting Machine

FOB Price

USD $2,100 - $3,600 / Set

1 Set(Min.Order)

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Condition	New	Type	Hydraulic Cutting Machine
Application	a layer or multi-layers of leather, rubber,plastic,hardpapers,fibers	Place of Origin	Jiangsu, China
Brand Name	GSB	Model Number	XCLP3-25T
Dimensions	2000x800x1980mm	Voltage	220V/380V/415V
Power(W)	1.5kw	Certification	CE
After-sales Service Provided	Engineers available to service machinery overseas

USE AND CHARACTER

It is used to cut a layer or multi-layer of leather, rubber, plastic, hardpapers, fibres, chemical fibres, etc.

It is easy to adjust low voltaye and set travel.
Rising position of press board can be set at randam to lessen idle trave.
Press board can be move towards right or left opera-tion visibility is verygood.

TECHNICAL SPECIFICATION

Model	XCLP3-25T
Maximum Cutting Force	25T
Cutting Speed	0.18m/s
Travel Adjustment Range	10-125mm
Range between the Working Tables	40-165mm
Size of upper Rocker	500x500mm
Size of lower Worktable	1760x500mm
Main Motor Power	2.2kw
Overall Dimension	2000x800x1980mm

RELATED PRODUCTS

Hydraulic Traveling Head Cutting Machine

CONTACTS

Name: Emily Wang

Add: No. 7-7, Airport Road, Nanyang Economic Development Zone

Remark: We can make the machine according to your specifically order, for example the color, the motor information, the working table etc.
