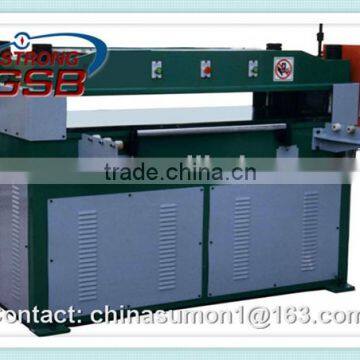

40T Precise 4-column Hydraulic Plane Cutting Machine/double eagle die cutting machine

FOB Price

Negotiable / Set

1 Set(Min.Order)

Supply Ability 100 Set / Sets per Month
Port shanghai
Payment TermsT/T L/C D/P D/A Credit Card PayPal

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Place of Origin	Jiangsu, China		Brand Name	GSB
Model Number	P4-40T		After-sales Service Provided	No overseas service provided

Product Description

P4-40 Auto-balance Precise Four-column Hydraulic Plane Cutting Machine/Die cutting machine

Product Description

1. The machine is widely applicable for cutting of nonmetal materials in various

industries by cutting die.
2. Adopt double oil cylinder, precise double-crank connecting rod mechanism, which
can guarantee that the cutting depth at every cutting position is same.
3. With special setting mechanism, and equipped with die cutter and cutting depth
setting, the travel adjustment is simple and accurate.
4. The pressing board of cutting carries out slow cutting when it contacts the die
cutter, which can make that there is no size error between the uppermost layer
and lowermost layer of cut materials.
5. The central oil supply automatic lubricating system guarantees machine precision
and prolongs service life of machine.

Main technical data

Model	Cutting force	Machine bed	Motor	Cutting area	Open daylight	Net weight
P4-30T	30TON	1780x1000x1350mm	3HP	1250x500mm	50-180mm	1400kg
		2050x1000x1350mm		1470x500mm		1500kg
		2180x1000x1350mm		1600x500mm		1700kg
P4-40T	40TON	1830x1200x1420mm	5HP	1250x610,710mm	50-180mm	1700,1800kg
		2100x1200x1420mm		1470x610,710mm		1800,2000kg
		2230x1200x1420mm		1600x610,710mm		2000,2200kg
P4-50T 60T	50TON 60TON	1880x1300x1520mm	6HP	1250x800mm	50-240mm	2500kg
		2150x1300x1520mm		1470x800mm		2800kg
		2280x1300x1520mm		1600x800mm		3000kg

REMARK:MY FACTORY CAN MAKE THE MACHINE ACCORDING YOUR ORDER,FOR EXAMPLE,THE CUTTING FORCE,CUTTING AREA,FEEDING DEVICE,SPECIAL STROKE ETC.
