High speed galvanized steel Stud And Track Roll Forming Machine Standard CD & UD
- T/T L/C D/P D/A
- 7 days
You May Like
-
Automatic Metal dryway Stud And Track Roll Forming Machine 0.4-1.0mm Thickness
-
Portable automatic Color steel stud roll forming machine 7.5kw with CE Certificate
-
Furring Channel / Hat Section / Angles Cold Roll Forming Machine 0-20m/min
-
Automatic galvanized steel stud roll forming machine Thickness 0.3 - 1.5mm
-
Omega Sheet Stud And Track Roll Forming Machine For Furring Profiles
-
Full - Automatic Furring Stud And Track Roll Forming Machine with Following Ctting
Product Details
| Brand Name | ZOOY | Place of Origin | China | |
| Model Number | ZO-CD&UD |
Product Description
Certification:CE
Standard CD & UD Stud Roll Forming Machine With High Speed Up To 45m/ min, Following Cutting
Main Specifications ??
?
|
Coil Material? |
Thickness |
0.3-1.0 mm ? ? ? ? ? ? ? ? ? ? ? ? ? ? |
|
|
Coil width |
Depend on customer’s requires |
||
|
Yield Strength |
250-550Mpa |
||
|
Material |
Color steel, ?galvanized steel, G.I ? ? ? ? |
? | |
|
Decoiler / Uncoiler |
Coil Width????????????????????????????? |
Max. 1000mm |
|
|
I.D |
510-610mm |
||
|
O.D |
Max. 1200mm |
||
|
Capability |
Max. 5Tons |
||
|
Decoiler type |
Manual / Hydraulic/Automatic |
||
|
Feeding & guiding |
Pinch feeding |
1?Units ( 2 Rollers ) |
|
|
guiding |
2 Rollers |
||
|
Cutting device |
Cutting motion |
Hydraulic Cutting, following -Cutting ( cutting sheet after forming ) |
|
|
Cutting blades |
Cr12Mov with heat treatment HRC58-62 |
||
|
Length Measuring |
Automatic length measuring by encoder & PLC. |
||
|
Cutting Tolerance |
1.5mm(per 3m) |
||
|
Roll Forming?Machine |
Forming Stations |
ABOUT 8-10 steps |
|
| ? | |||
|
Roller material |
45# steel, heat treatment??????? |
||
|
Diameter of shaft |
65mm |
||
|
Shaft material |
High grade 45# steel |
||
|
Drive type |
Gear box driven |
||
|
Forming speed |
0-45m/min |
||
|
Main power |
11kw |
||
| ? | |||
|
Electrical control |
PLC |
PANASONIC Brand or Custom-made |
|
|
Inverter |
YASKAWA Brand or Custom-made |
||
|
Touch screen |
MCGS Brand?or Custom-made |
||
|
Operation type |
Touch screen & Button |
||
|
Hydraulic Station |
Hydraulic station |
Famous Chinese brand |
|
|
Hydraulic power |
7.5KW |
||
|
Runout Table |
Table type |
Simple non-power type |
|
|
Function |
To support the finished panels |
||
|
TOTAL WEIGHT |
APRRO 7TONS |
The type pursues board (basis on customer’s require to design)

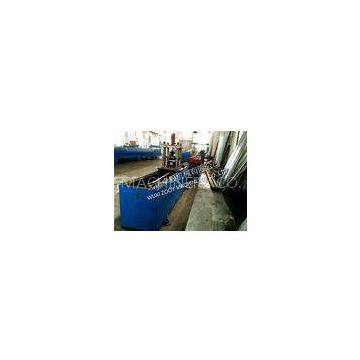

Products Photos
Competitive Advantage:
Economical Simple Standard speed High Quality Reliable Durable Reasonable Price Good after Service 1 Year Warranty More Than 10Years Experience.
Guarantee:
1:Guaranteed against malfunctions due to manufacturing defects for 1 year after date of purchase. Repairs will be made free of charge.
2:Reparis will not be performed free of change even during the guarantee period in the follow circumstances
-? damage occurs due to a natural disaster
- ?malfunction occurs due to user error
-? malfunction o
