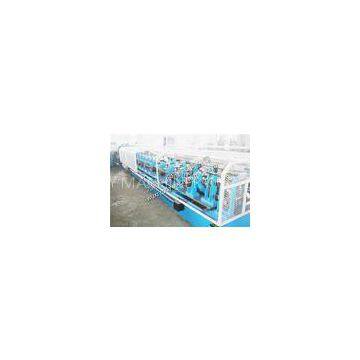

Interchangeable Metal CZ Purlin Roll Forming Machine For Web 80mm-350mm
- 0 Piece / Pieces per Month
- T/T L/C D/P D/A
- 7 days
You May Like
-
Full Automatic CZ Purlin Roll Forming Machine With 30KW Gearbox Driven
-
Carbon Steel Sigma Purlin Roll Forming Machine 15KW Hydraulic Station
-
floor Metal Deck Roll Forming Machine with PANASONIC PLC control CE
-
Professional Color Steel Flooring / Metal Deck Roll Forming Machinery Line
-
corrugated sheet Roof Tile Roll Forming Machine with Hydraulic Station 15m/min
-
G90 G115 Carbon Steel Arch Culvert Panel Silo Equipment Cold Roll Forming Equipment
Product Details
| Brand Name | ZOOY | Place of Origin | China | |
| Model Number | ZO-CZ350 |
Product Description
Certification:CE
Quickly Exchange CZ Purlin Roll Forming Machine For Web From 80mm To 350mm
Description
1. One machine can produce different C and Z Purlins through simple manual step-less adjustment, when to produce different profiles, no need to change the forming rollers. In the process, machine adopt automatic control model, it can auto punch, cut, forming based on inputting length of purlin, portrait hole distance, quantity, etc dates.
2. C and Z purlin roll former make up of de-coiler, feeding, leveling, 2 sets hydraulic punching device, hydraulic cutting, speediness interchangeable forming machine, PLC control system, hydraulic stations, run-out tables.
3. This line main forming drive adopt reducer motor and frequency conversion control, speed control…
4.It is quick and easy to operate the machine, and beautiful appearance, high production efficiency, forming speed up to 20m/min.
Composition of machine
|
Roll forming main machine |
1 unit |
|
Un-coiler |
1 unit |
|
PLC Control panel |
1 unit |
|
Hydraulic station |
1 unit |
|
Pre-cutting device |
1 unit |
|
Pre-punching device |
1 unit |
|
Safety cover device |
1 unit |
|
Manual out table |
2 unit |
Specifications ??
|
Coil Material? |
Thickness |
1.5-3.5mm ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? ? |
|
Coil width |
Depend on customer’s requires |
|
|
Yield Strength |
250-350Mpa |
|
|
Material |
GI. Carbon Steel? ? ? ? ? ? ? ? ? ? ? ? ? ? |
|
|
Purlin Sizes |
Web width |
80-350mm |
|
Height |
40-80mm |
|
|
Lip |
12-25mm |
|
|
Conversion process |
C-C different?sizes???????????????? |
Approx. 2-3 minutes |
|
Z-Z different sizes???? |
Approx. 2-3 minutes |
|
|
C-Z or Z-C |
Approx. 5-15 minutes |
|
|
Decoiler / Uncoiler |
Coil Width???????????????????????????????? |
Max. 600mm |
|
I.D |
510-610mm |
|
|
O.D |
Max. 1300mm |
|
|
Capability |
Max. 5 Tons |
|
|
Decoiler type |
Manual / Hydraulic/Automatic |
|
|
Feeding & Leveling |
Pinch feeding |
3?Units ( 6 Rollers ) |
|
Leveling |
7 Rollers ( Upper 3 Rollers, Bottom 4 Rollers ) |
|
|
Punching device |
Punching ?motion |
Hydraulic Punching, Pre-punching |
|
Punching dies???????????? |
Cr12 Mov Steel, HRC58-62 |
|
|
Punching?? station??????? ??????? |
?1-6 Unites ( depend on hole patterns ) |
|
|
Punching in longitude controlled by PLC, punching at horizontal adjusted by manual hand wheel. |
||
|
Cutting device |
Cutting motion |
Hydraulic Cutting, Pre-Cutting ( cutting sheet before forming ) |
|
Cutting blades |
Cr12Mov with heat treatment HRC58-62 |
|
|
Length Measuring |
Automatic length measuring by encoder & PLC. |
|
|
Cutting Tolerance |
1.5mm(per 3m) |
|
|
Roll Forming?Machine |
Forming Stations |
17?Stations? |
