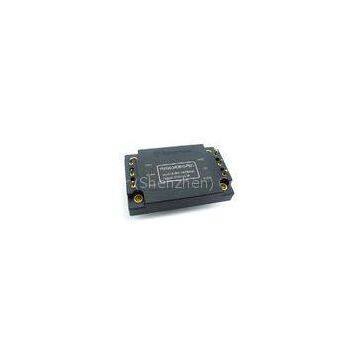

Wide input range 18 - 36V DC-DC Converters 100W Output 15V YN100-24DB15-PEC

FOB Price

Negotiable / Kilogram

1 Kilogram(Min.Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Enargy		Place of Origin	China
Model Number	YN100-24DB15-PEC

Product Description

Delivery Time:1-8 Weeks

DC-DC Converters 100W Output 15V YN100-24DB15-PEC

Key Features

Output power: 100W

Wide input range: 18-36Vdc

High conversion efficiency: Up to 91%

Line regulation to ±1%

Load regulation to ±1%

Isolation voltage :1500V

Enable (ON/OFF) control

Output over-Current protection

Hiccup mode short circuit protection

Over-temperature protection

Input under-voltage lock-out

Product Overview

These DC-DC converter modules use advanced power

processing, control and packaging technologies to provide

the performance, flexibility, reliability and cost effectiveness

of a mature power component. High frequency Active Clamp

switching provides high power density with low noise and

high efficiency.

1. Electric Characteristics

1.1 Absolute Maximum Ratings

Parameter	Min	Typ	Max	Units	Notes
Input Voltage	?	?	40	Vdc	Continuous, non-operating
?	?	38	Vdc	Continuous, operating
?	?	40	Vdc	Operating transient protection,<100mS
Isolation Voltage	?	?	2000	Vdc	Input to Output
Operating Temperature	-40	?	100	℃	In view of PCB Temperature
Storage Temperature	-55	?	105	℃	?
Enable to -Vin Voltage	-0.5	?	10	Vdc	?

1.2 Input Characteristics

Parameter	Min	Typ	Max	Units	Notes
Input Voltage Range	18	24	36	Vdc	?
Under-Voltage Lockout	?	17.5	17.9	Vdc	Recovery point
15.5	16.5	?	Vdc	Protect point
Maximum Input Current	?	?	6.8	A	Vin min,Output full load
Efficiency	?	90	?	%	Rated input;Rated load
Dissipation,standby	?	?	12	W	No Load

1.3 Output Characteristics

Parameter	Min	Typ	Max	Units	Notes
Output Voltage Set point	14.85	15	15.15	Vdc	+Vout	Rated input voltage,No load
-14.85	-15	-15.15	Vdc	-Vout
Output Voltage Range	14.55	15	15.45	Vdc	+Vout	Rated input voltage, load
-14.55	-15	-15.45	Vdc	-Vout
Output Current Range	0	?	3.33	A	+Vout	Two at the same time increase the load
0	?	3.33	A	-Vout
Line Regulation	?	±0.5	±1	%	+Vout	Two at the same time increase the load
?	±0.5	±1	%	-Vout
Load Regulation	?	±0.5	±1	%	+Vout	Two at the same time increase the load
?	±0.5	±1	%	-Vout
Output over-Current protection	3.5	4	4.4	A	+Vout	95% of the rated output voltage,Load
3.5	4	4.4	A	-Vout
Short Circuit Current	?	?	4	A	+Vout	Two simultaneous short-circuit
?	?	4	A	-Vout
Ripple (RMS)
