Home > Products > DC-DC Converters > 36 - 72v to 12v dc-dc converter MIL-STD-810 Standard MT13-48S12-POC

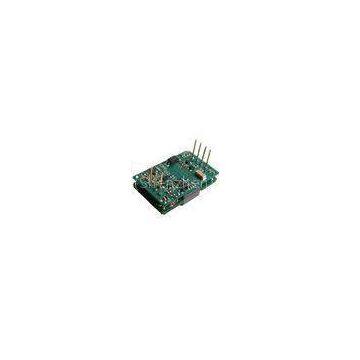

36 - 72v to 12v dc-dc converter MIL-STD-810 Standard MT13-48S12-POC

FOB Price

Negotiable / Kilogram

1 Kilogram(Min.Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Enargy		Place of Origin	China
Model Number	MT13-48S12-POC

Product Description

Delivery Time:1-8 Weeks

DC-DC Converters 13W Output 12V MT13-48S12-POC

Key Features

Output power: 13W

Wide input range:36-72Vdc

High conversion efficiency: 88%

Line regulation to ±0.5%

Load regulation to ±0.5%

Isolation voltage :1,500V

Enable (ON/OFF) control

Output over-current protection

Hiccup mode short circuit protection

Over-temperature protection

Input under-voltage lock-out

Output voltage trim -5～+10 % Vout

Product Overview

These DC-DC converter modules use advanced power processing, control and packaging technologies to provide the performance, flexibility, reliability and cost effectiveness of a mature power component. High frequency Active Clamp switching provides high power density with low noise and high efficiency.

1. Electric Characteristics

1.1 Absolute Maximum Ratings

Parameter	Min	Typ	Max	Units	Notes
Input Voltage	?	?	75	Vdc	Continuous, non-operating
?	?	72	Vdc	Continuous, operating
?	?	75	Vdc	Operating transient protection,<100mS
Isolation voltage	?	?	2000	Vdc	Input to output
Operating Temperature	-40	?	100	℃	In view of PCB Temperature
Storage Temperature	-55	?	105	℃	?
Enable to Vin- Voltage	-0.5	?	10	Vdc	?

1.2 Input Characteristics

Parameter	Min	Typ	Max	Units	Notes
Input Voltage Range	36	48	72	Vdc	?
Under-Voltage Lockout	?	34	35	Vdc	Recovery point
32	33	?	Vdc	Protect point
Maximum Input Current	?	?	0.45	A	Input Vin min,Output full load
Efficiency	?	88	?	%	Rated Input;Rated Load
Dissipation,standby	?	0.5	?	W	No Load

1.3 Output Characteristics

Parameter	Min	Typ	Max	Units	Notes
Output Voltage Set Point	11.85	12.00	12.15	Vdc	Nominal input. No Load
Output Voltage Range	11.75	12.00	12.25	Vdc	?
Output Current Range	0.01	?	1.08	A	?
Line Regulation	?	±0.02	±0.50	%	?
Load Regulation	?	±0.02	±0.50	%	?
Current Limit	1.15	1.4	?	A	Output voltage 95% of nominal
Short Circuit Current	1	?	3	A	?
Ripple (RMS)	?	25	?	mV	Nominal input; full load; 20 MHz bandwidth.
Noise(Peak-to-Peak)	?	80	?	mV
Maximum Output Cap	?	?	3000	μF	?

1.4 Dynamic Response Characteristics

Parameter	Min	Typ	Max	Units	Notes
Change In Output Current	?	100	?	mV	50% to 75% to 50% Iout max; (di/dt=0.1A/μs).
?	100	?	mV	50% to 75% to 50% Iout max; (di/dt=0.5A/μs).
Dynamic recovery time	?	200	?	μS	?
Turn-on Time	?	2	?	mS	Starting from vin to vout rise to 90%
Turn-off overshoot	?
