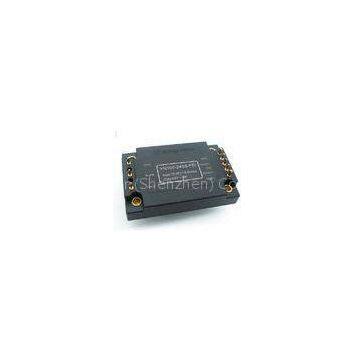

High Efficiency Step-up Dc-dc Converters 100W Output 5Volt YN100-24S5-PEI
- T/T L/C D/P D/A
- 7 days
You May Like
-
24v to 48v Dc-dc Converter With Over Current Protection MT13-24S48-PEM
-
36 - 72v to 12v Dc-dc Converter MIL-STD-810 Standard MT13-48S12-POC
-
13W DC-DC Converter Military Power Supply Output 7.5V MT13-12S7V5-PEM
-
IEC 61000-4-2 Output 15V DC-DC Converters 13W MT13-24S15-POC
-
13W Low Power Isolated dc dc Converter Module Output 12V MT13-24S12-POC
-
Custom Power Supplies for Military DC-DC Converter Output 12V MT13-24S12-PEM
Product Details
| Brand Name | Enargy | Place of Origin | China | |
| Model Number | YN100-24S5-PEI |
Product Description
DC-DC Converters 100W Output 5V YN100-24S5-PEI
Key Features
Output power: 100W
Wide input range: 18-36Vdc
High conversion efficiency: Up to 93%
Line regulation to ±1%
Load regulation to ±1%
Isolation voltage :1500V
Enable (ON/OFF) control
Output over-Current protection
Hiccup mode short circuit protection
Over-temperature protection
Input under-voltage lock-out
Output voltage trim: ±8% Vout
Product Overview
These DC-DC converter modules use advanced power
processing, control and packaging technologies to provide
the performance, flexibility, reliability and cost effectiveness
of a mature power component. High frequency Active Clamp
switching provides high power density with low noise and
high efficiency.
1. Electric Characteristics
1.1 Absolute Maximum Ratings
| Parameter | Min | Typ | Max | Units | Notes |
| Input Voltage | ? | ? | 45 | Vdc | Continuous, non-operating |
| ? | ? | 40 | Vdc | Continuous, operating | |
| ? | ? | 45 | Vdc | Operating transient protection,<100mS | |
| Isolation Voltage | ? | ? | 2000 | Vdc | Input to Output |
| Operating Temperature | -20 | ? | 85 | ℃ | PCB Temperature |
| Storage Temperature | -30 | ? | 100 | ℃ | ? |
| Enable to -Vin Voltage | -0.5 | ? | 10 | Vdc | ? |
1.2 Input Characteristics
| Parameter | Min | Typ | Max | Units | Notes |
| Input Voltage Range | 18 | 24 | 36 | Vdc | ? |
| Under-Voltage Lockout | ? | 17.5 | 17.9 | Vdc | Recovery point |
| 15.5 | 16.5 | ? | Vdc | Protect point | |
| Maximum Input Current | ? | ? | 6.7 | A | Vin min,Output full load |
| Efficiency | ? | 92 | ? | % | Rated input;Rated load |
| Dissipation,standby | ? | 5 | 12 | W | No Load |
1.3 Output Characteristics
| Parameter | Min | Typ | Max | Units | Notes |
| Output Voltage Set point | 4.95 | 5.00 | 5.05 | Vdc | Rated input voltage,No load |
| Output Voltage Range | 4.90 | 5.00 | 5.10 | Vdc | ? |
| Output Current Range | 0 | ? | 20 | A | ? |
| Line Regulation | ? | ±0.50 | ±1.0 | % | ? |
| Load Regulation | ? | ±0.09 | ±1.0 | % | ? |
| Current Limit | 21 | 22.5 | 25 | A | Output voltage 95% of nominal |
| Short Circuit Current | ? | ? | 25 | A | ? |
| Ripple (RMS) | ? | 35 | ? | mV | Nominal input; full load; 20 MHz bandwidth. |
| Noise(Peak-to-Peak) | ? | 75 | ? | mV | |
|
Capacitive load from themachine |
? | ? | 12000 | μF | ? |
1.4 Dynamic Response Characteristics
| Parameter | Min | Typ | Max | Units | Notes |
| Change In Output Current | ? | 180 | ? | mV | 50% to 75% to 50% Iout max; (di/dt= 0.1A/μs) |
| ? | 220 | ? | mV | 50% to 75% to 50% Iout max; (di/dt= 2.5A/μs) | |
| Dynamic recovery time | ? | 300 | ? | μS | ? |
| Output rise time | ? | 15 | ? | mS | Starting from vin to vout rise to |
