Home > Products > DC-DC Converters > UL / cUL60950 DC-DC Converters 30W Output 5 Volt XD30-12S5-PECW

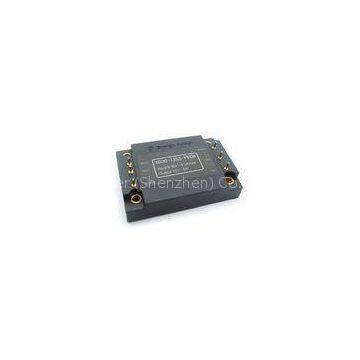

UL / cUL60950 DC-DC Converters 30W Output 5 Volt XD30-12S5-PECW

FOB Price

Negotiable / Piece

1 Piece(Min.Order)

Payment TermsT/T L/C D/P D/A
Delivery Detail7 days

Request Sample Customized Request Request Free Catalogs

Contact Now

Get lowest price

Product Details

Brand Name	Enargy		Place of Origin	China
Model Number	XD30-12S5-PECW

Product Description

Delivery Time:1-8 Weeks

DC-DC Converters 30W Output 5V XD30-12S5-PECW

Key Features

Output power: 30W

Wide input range: 9-36Vdc

High conversion efficiency: Up to 89%

Line regulation to ±1%

Load regulation to ±1%

Fixed operating frequency

Isolation voltage :1500V

Enable (ON/OFF) control

Output over-voltage protection

Output over-load protection

Hiccup mode short circuit protection

Over-temperature protection

Input under-voltage lock-out

Product Overview

These DC-DC converter modules use advanced power

processing, control and packaging technologies to provide

the performance, flexibility, reliability and cost effectiveness

of a mature power component. High frequency Active Clamp

switching provides high power density with low noise and

high efficiency.

1. Electric Characteristics

Electrical characteristics apply over the full operating range of input voltage, output load and base plate temperature,

unless otherwise specified. All temperatures refer to the operating temperature at the center of the base plate. All data

testing at Ta=25oC except especial definition.

1.1 Absolute Maximum Ratings

Parameter	Min	Typ	Max	Units	Notes
Input Voltage			40	Vdc	Continuous, non-operating
		36	Vdc	Continuous, operating
		40	Vdc	Impulse voltage,<100ms,operating
Isolation voltage			2000	Vdc	Input to output
Operating Temperature	-40		100	℃
Storage Temperature	-55		105	℃
Enable to -Vin Voltage	-2		10	Vdc

1.2 Input Characteristics

Parameter	Min	Typ	Max	Units	Notes
Input Voltage Range	9	24	36	Vdc	Continuous
Turn on Voltage Range	10	24	36	Vdc	Continuous
Under-Voltage Lockout	8.0	8.5	9.0	Vdc	Turn-on Threshold
7.5	8.0	8.5	Vdc	Turn-off Threshold
Maximum Input Current			4.2	A	Full load;9Vdc Input
Efficiency		88		%	Figures1-4
Dissipation		3	6		Min. load
Disabled Input Current		5			Enable pin low
Recommend External Input Capacitance		100		W	Typical ESR 0.1-0.2Ω

1.3 Output Characteristics
